LRC diode, transistor, MOSFET, Rectifier

B&M tech is an official distributor for LRC company. LRC is a famous Chinese discrete components company with full product range for diode, transistor, MOSFET and rectifier. Product can be benchmark with OnSemi and Diodes.

B&M tech are providing value added service to recommend LRC part number by getting the required parameter or alternative MPN. Through this service we helped our customer to reduce cost and improve the lead time dramatically.

Here is the standard product selector file, you can download it.

MOSFET

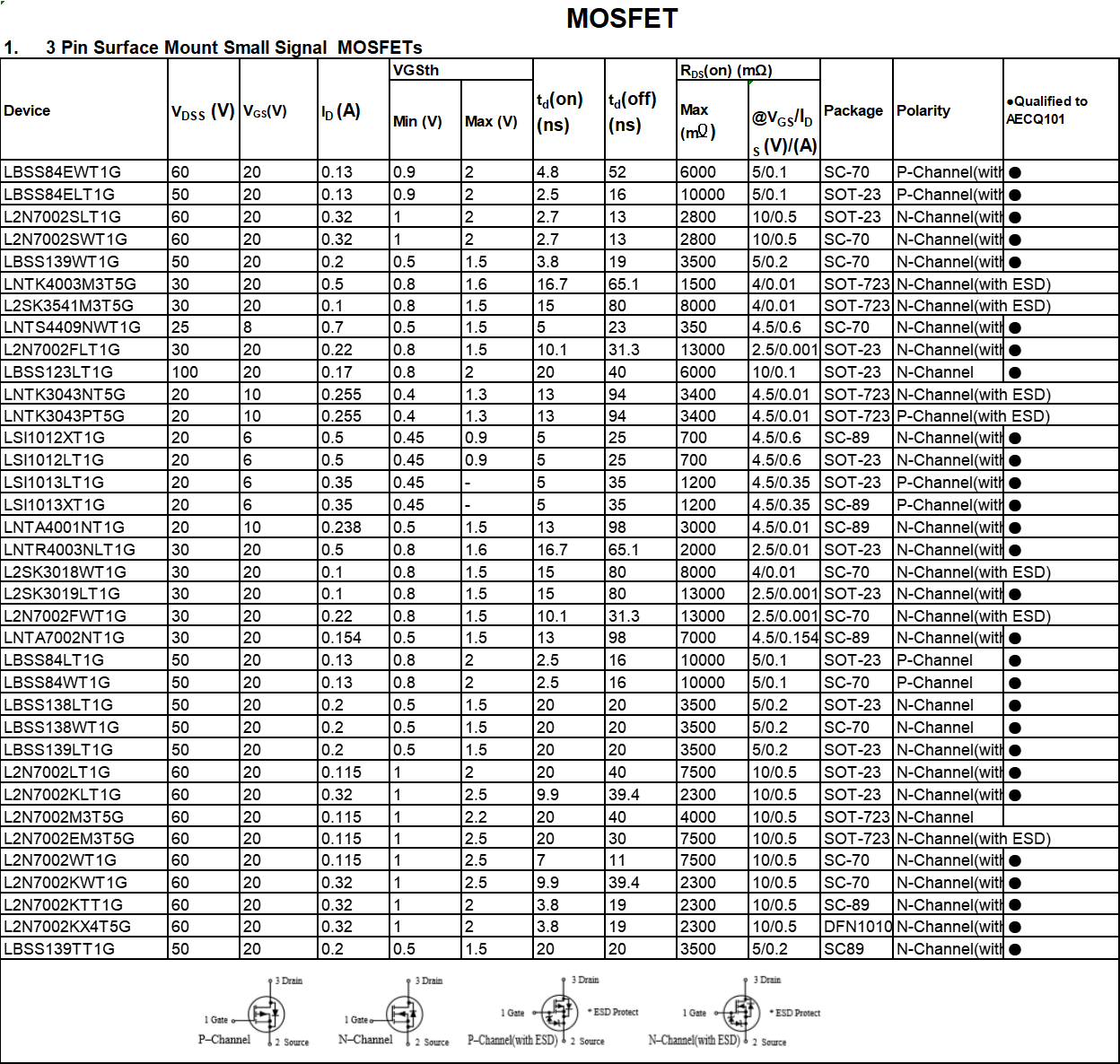

1.     3 Pin Surface Mount Small Signal  MOSFETs
Device	VDSS (V)	VGS(V)	ID (A)	VGSth		td(on) (ns)	td(off) (ns)	RDS(on) (mΩ)		Package	Polarity	●Qualified to AECQ101
				Min (V)	Max (V)			Max (mΩ)	@VGS/IDS (V)/(A)
LBSS84EWT1G	60	20	0.13	0.9	2	4.8	52	6000	5/0.1	SC-70	P-Channel(with ESD)	●
LBSS84ELT1G	50	20	0.13	0.9	2	2.5	16	10000	5/0.1	SOT-23	P-Channel(with ESD)	●
L2N7002SLT1G	60	20	0.32	1	2	2.7	13	2800	10/0.5	SOT-23	N-Channel(with ESD)	●
L2N7002SWT1G	60	20	0.32	1	2	2.7	13	2800	10/0.5	SC-70	N-Channel(with ESD)	●
LBSS139WT1G	50	20	0.2	0.5	1.5	3.8	19	3500	5/0.2	SC-70	N-Channel(with ESD)	●
LNTK4003M3T5G	30	20	0.5	0.8	1.6	16.7	65.1	1500	4/0.01	SOT-723	N-Channel(with ESD)
L2SK3541M3T5G	30	20	0.1	0.8	1.5	15	80	8000	4/0.01	SOT-723	N-Channel(with ESD)
LNTS4409NWT1G	25	8	0.7	0.5	1.5	5	23	350	4.5/0.6	SC-70	N-Channel(with ESD)	●
L2N7002FLT1G	30	20	0.22	0.8	1.5	10.1	31.3	13000	2.5/0.001	SOT-23	N-Channel(with ESD)	●
LBSS123LT1G	100	20	0.17	0.8	2	20	40	6000	10/0.1	SOT-23	N-Channel	●
LNTK3043NT5G	20	10	0.255	0.4	1.3	13	94	3400	4.5/0.01	SOT-723	N-Channel(with ESD)
LNTK3043PT5G	20	10	0.255	0.4	1.3	13	94	3400	4.5/0.01	SOT-723	P-Channel(with ESD)
LSI1012XT1G	20	6	0.5	0.45	0.9	5	25	700	4.5/0.6	SC-89	N-Channel(with ESD)	●
LSI1012LT1G	20	6	0.5	0.45	0.9	5	25	700	4.5/0.6	SOT-23	N-Channel(with ESD)	●
LSI1013LT1G	20	6	0.35	0.45	-	5	35	1200	4.5/0.35	SOT-23	P-Channel(with ESD)	●
LSI1013XT1G	20	6	0.35	0.45	-	5	35	1200	4.5/0.35	SC-89	P-Channel(with ESD)	●
LNTA4001NT1G	20	10	0.238	0.5	1.5	13	98	3000	4.5/0.01	SC-89	N-Channel(with ESD)	●
LNTR4003NLT1G	30	20	0.5	0.8	1.6	16.7	65.1	2000	2.5/0.01	SOT-23	N-Channel(with ESD)	●
L2SK3018WT1G	30	20	0.1	0.8	1.5	15	80	8000	4/0.01	SC-70	N-Channel(with ESD)
L2SK3019LT1G	30	20	0.1	0.8	1.5	15	80	13000	2.5/0.001	SOT-23	N-Channel(with ESD)	●
L2N7002FWT1G	30	20	0.22	0.8	1.5	10.1	31.3	13000	2.5/0.001	SC-70	N-Channel(with ESD)
LNTA7002NT1G	30	20	0.154	0.5	1.5	13	98	7000	4.5/0.154	SC-89	N-Channel(with ESD)	●
LBSS84LT1G	50	20	0.13	0.8	2	2.5	16	10000	5/0.1	SOT-23	P-Channel	●
LBSS84WT1G	50	20	0.13	0.8	2	2.5	16	10000	5/0.1	SC-70	P-Channel	●
LBSS138LT1G	50	20	0.2	0.5	1.5	20	20	3500	5/0.2	SOT-23	N-Channel	●
LBSS138WT1G	50	20	0.2	0.5	1.5	20	20	3500	5/0.2	SC-70	N-Channel	●
LBSS139LT1G	50	20	0.2	0.5	1.5	20	20	3500	5/0.2	SOT-23	N-Channel(with ESD)	●
L2N7002LT1G	60	20	0.115	1	2	20	40	7500	10/0.5	SOT-23	N-Channel(with ESD)	●
L2N7002KLT1G	60	20	0.32	1	2.5	9.9	39.4	2300	10/0.5	SOT-23	N-Channel(with ESD)	●
L2N7002M3T5G	60	20	0.115	1	2.2	20	40	4000	10/0.5	SOT-723	N-Channel
L2N7002EM3T5G	60	20	0.115	1	2.5	20	30	7500	10/0.5	SOT-723	N-Channel(with ESD)
L2N7002WT1G	60	20	0.115	1	2.5	7	11	7500	10/0.5	SC-70	N-Channel(with ESD)	●
L2N7002KWT1G	60	20	0.32	1	2.5	9.9	39.4	2300	10/0.5	SC-70	N-Channel(with ESD)	●
L2N7002KTT1G	60	20	0.32	1	2	3.8	19	2300	10/0.5	SC-89	N-Channel(with ESD)	●
L2N7002KX4T5G	60	20	0.32	1	2	3.8	19	2300	10/0.5	DFN1010-4	N-Channel(with ESD)	●
LBSS139TT1G	50	20	0.2	0.5	1.5	20	20	3500	5/0.2	SC89	N-Channel(with ESD)	●
