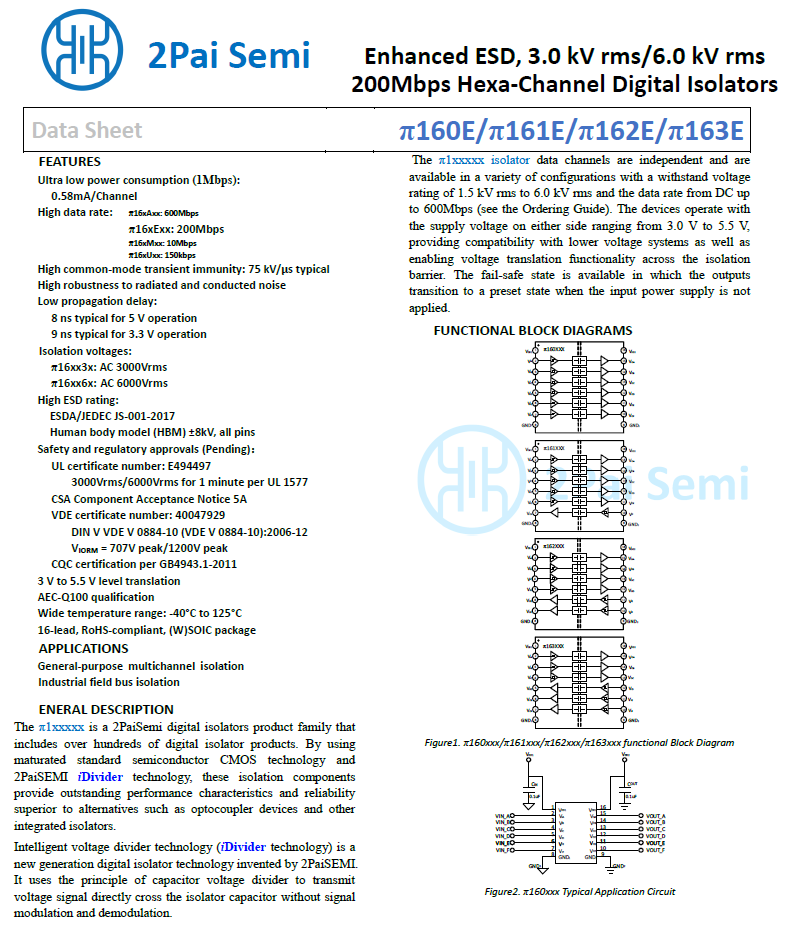

Ultra high speed digital isolator chip

Today we would like to introduce one ultra high speed digital isolator.

Key selling points：

       1, ultra fast data rate, upto 600Mbps

       2, Ultra high isolating voltage, upto AC 6000Vrms

       3, fast delivery, huge stock in backend

       4, reasonable price.

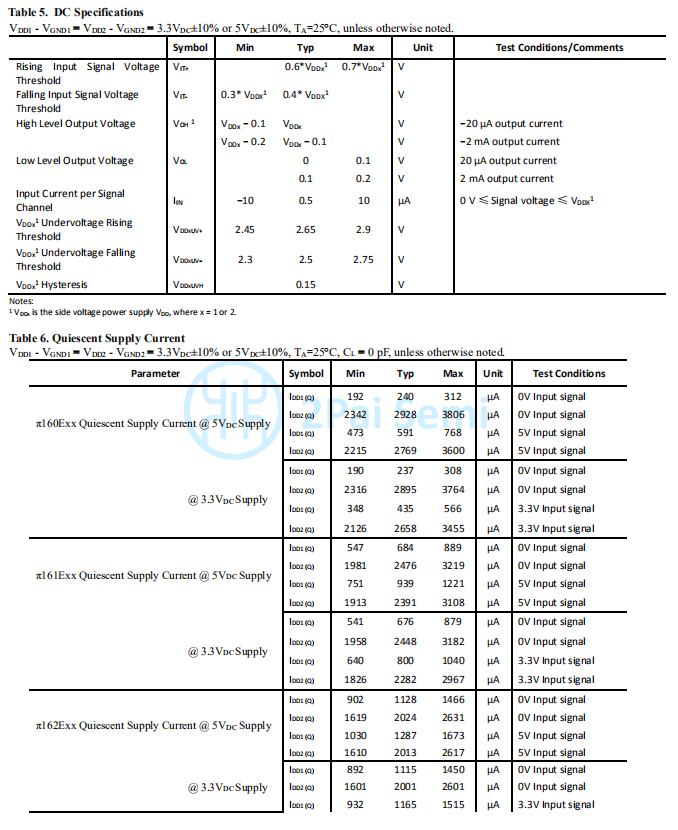

Ultra low power consumption (1Mbps):0.58mA

Channel High data rate:

        π16xAxx: 600Mbps  π16xExx: 200Mbps    π16xMxx: 10Mbps    π16xUxx: 150kbps

High common-mode transient immunity: 75 kV/µs typical

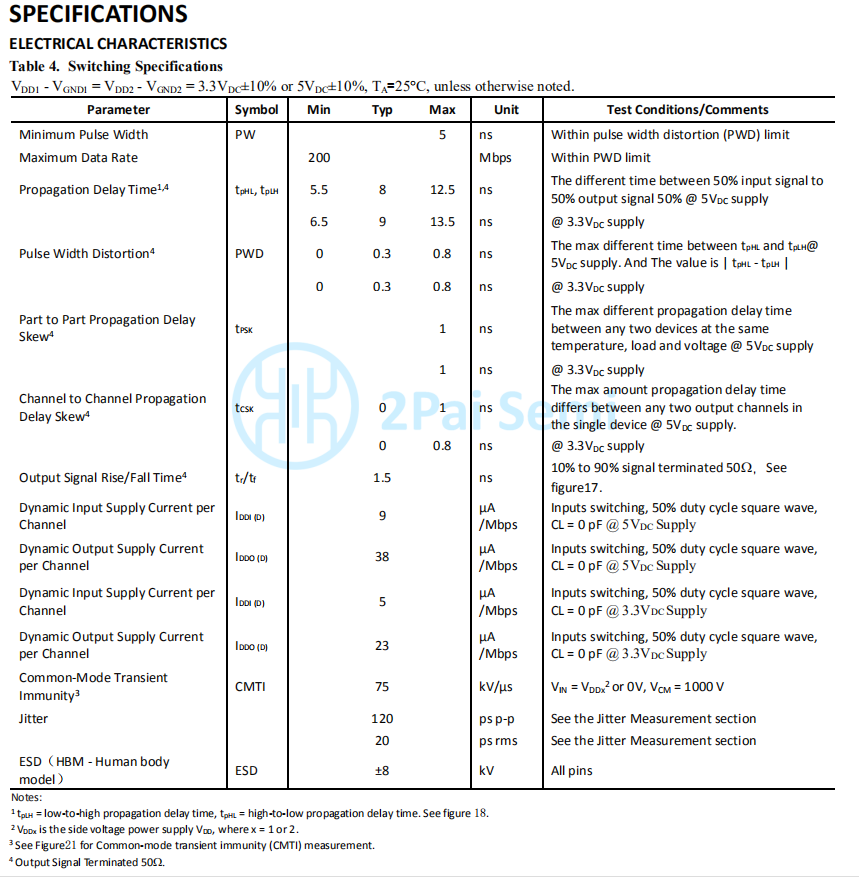

High robustness to radiated and conducted noise Low propagation delay: 8 ns typical for 5 V operation 9 ns typical for 3.3 V

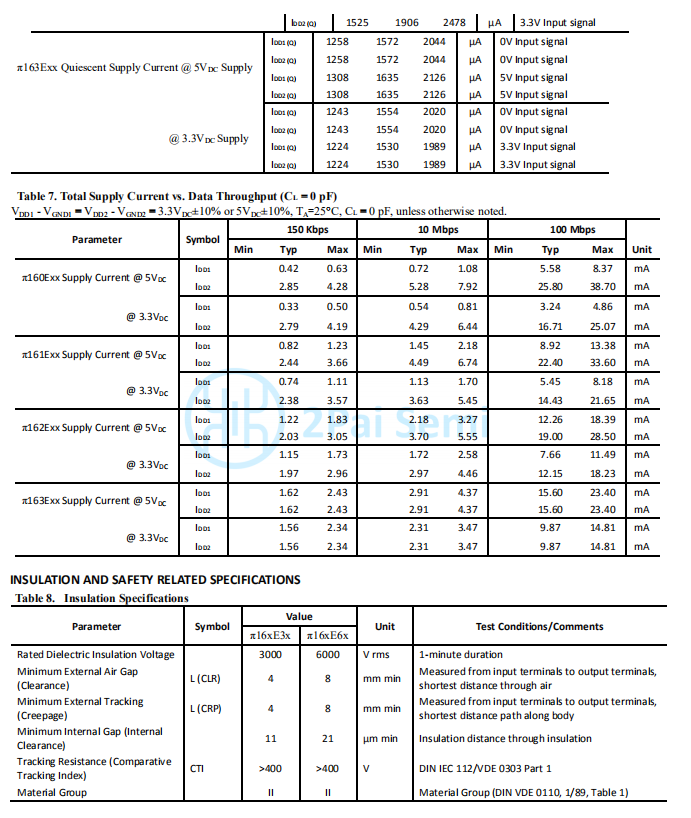

operation Isolation voltages:π16xx3x: AC 3000Vrms π16xx6x: AC 6000Vrms

High ESD rating: ESDA/JEDEC JS-001-2017 Human body model (HBM) ±8kV, all pins Safety and regulatory approvals (Pending)： UL certificate number: E494497 3000Vrms/6000Vrms for 1 minute per UL 1577 CSA Component Acceptance Notice 5A VDE

certificate number: 40047929 DIN V VDE V 0884-10 (VDE V 0884-10):2006-12 VIORM = 707V peak/1200V peak CQC certification per GB4943.1-2011 3 V to 5.5 V level translation AEC-Q100 qualification

Wide temperature range: -40°C to 125°C 16-lead, RoHS-compliant, (W)SOIC package

APPLICATIONS

    General-purpose multichannel isolationIndustrial field bus isolation
