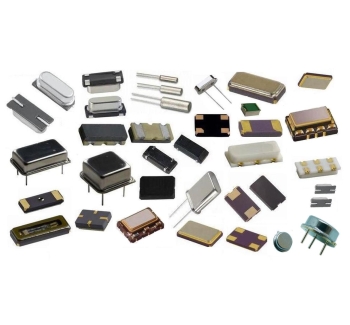

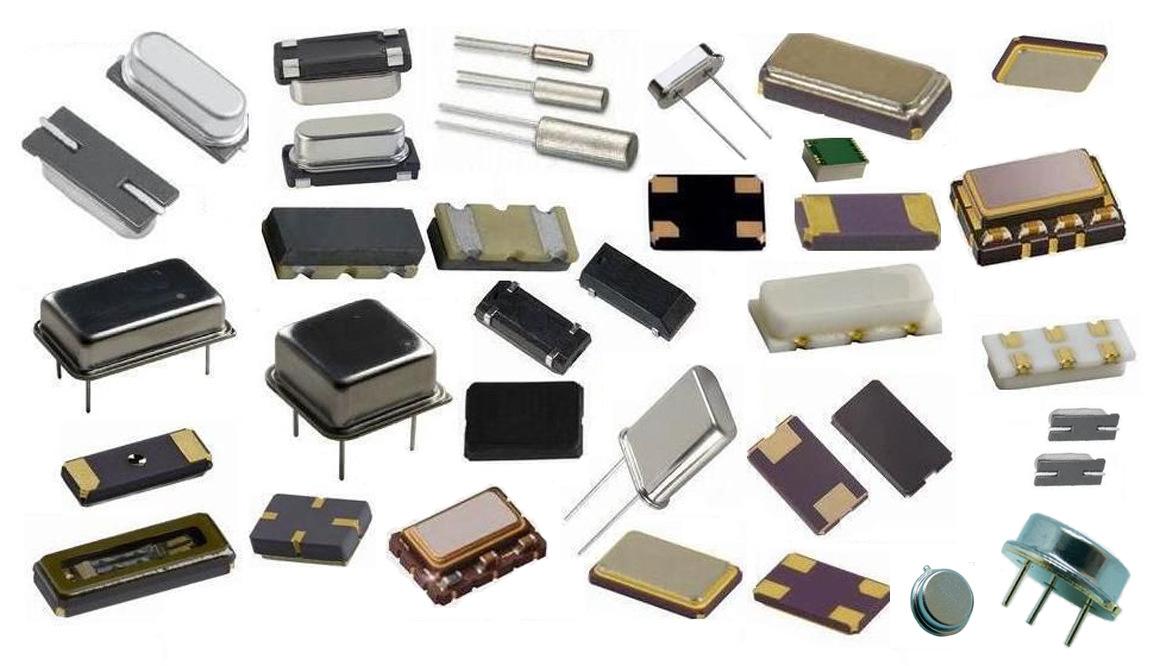

Crystal and Oscillator
Feel free todownloadour SPEC table for crystal and oscillator<HK B&M Crystal&OSC SPEC Table<-Returnwww.bm-cs.comWhatsapp/Wechat:+86-18621961382Mail:sales@bm-cs.com or java.zhang@bm-cs.co
Feel free to download our SPEC table for crystal and oscillator
<
| HK B&M Crystal&OSC SPEC Table | |||||||
| <-Return | www.bm-cs.com | ||||||
| Whatsapp/Wechat: +86-18621961382 Mail: sales@bm-cs.com or java.zhang@bm-cs.com | |||||||
| Series | Frequency Range | Mounting | Package | Load Capacitance | Freq tolerance(25℃) | Temp Range | PIN |
| CJK01 Crystal | 30KHz~100KHz | Through Hole | Φ3.0 H:8.0 | 12.5pF | ±10ppm,±20ppm,or specify | -10~60℃ -20~70℃ | 2 leads |
| CJK02 Crystal | 30KHz~100KHz | Through Hole | Φ2.0 H:6.0 | 12.5pF | ±10ppm,±20ppm,or specify | -10~60℃ -20~70℃ | 2 leads |
| CJK05 Crystal | 32.768KHz | Plastic SMD | 6.9*1.4*1.3mm | 12.5 pF,other spec. | ±20ppm,or specify | -20~70℃ -40~85℃ | 2 pads |
| CJK07 Crystal | 32.768KHz | Ceramic SMD | 3.2*1.5*0.75mm | 12.5 pF,other spec. | ±20ppm,or specify | -20~70℃ -40~85℃ | 2 pads |
| CJK08 Crystal | 32.768KHz | Ceramic SMD | 2.0*1.2*0.6mm | 12.5 pF,other spec. | ±20ppm,or specify | -20~70℃ -40~85℃ | 2 pads |
| CJK09 Crystal | 32.768KHz | Ceramic SMD | 1.6*1.0*0.5mm | 12.5 pF,other spec. | ±20ppm,or specify | -20~70℃ -40~85℃ | 2 pads |
| CJ02 Crystal | 3.2MHz~90MHz | Metal Can Through Hole | HC-49S | 16pF,20pF,30pF,or specify | ±20ppm,or specify | -20~70℃ -40~85℃ | 2 leads |
| CJ03 Crystal | 3.2MHz~90MHz | Metal Can SMD | HC-49S | 16pF,20pF,30pF,or specify | ±20ppm,or specify | -20~70℃ -40~85℃ | 2 flatted leads |
| CJ07 Crystal | 6MHz~80MHz | Ceramic SMD | 8.0*4.5*1.5mm | 10pF,16pF,20pF,or specify | ±30ppm,or specify | -20~70℃ -40~85℃ | 2 pads |
| CJ08 Crystal | 6MHz~100MHz | Ceramic SMD | 7.0*5.0*1.0mm | 16pF,20pF,or specify | ±10ppm,±20ppm,or specify | -20~70℃ -40~85℃ | 4 pads |
| CJ09 Crystal | 6MHz~100MHz | Ceramic SMD | 6.0*3.5*1.0mm | 16pF,20pF,or specify | ±10ppm,±20ppm,or specify | -20~70℃ -40~85℃ | 4 pads |
| CJ10 Crystal | 8MHz~100MHz | Ceramic SMD | 5.0*3.2*0.9mm | 10pF,16pF,20pF,or specify | ±10ppm,±20ppm,or specify | -20~70℃ -40~85℃ | 4 pads |
| CJ11 Crystal | 8MHz~80MHz | Ceramic SMD | 5.0*3.2*1.2mm | 10pF,16pF,20pF,or specify | ±20ppm,or specify | -20~70℃ -40~85℃ | 2 pads |
| CJ13 Crystal | 8MHz~54MHz | Ceramic SMD | 3.2*2.5*0.7mm | 10pF,or specify | ±10ppm,±20ppm,or specify | -20~70℃ -40~85℃ | 4 pads |
| CJ15 Crystal | 12MHz~54MHz | Ceramic SMD | 2.5*2.0*0.55mm | 8pF,10pF,12pF,or specify | ±10ppm,±20ppm,or specify | -20~70℃ -40~85℃ | 4 pads |
| CJ16 Crystal | 20MHz~54MHz | Ceramic SMD | 2.0*1.6*0.5mm | 8pF,10pF,12pF,or specify | ±10ppm,±20ppm,or specify | -20~70℃ -40~85℃ | 4 pads |
| CJ17 Crystal | 30MHz~54MHz | Ceramic SMD | 1.6*1.2*0.33mm | 8pF,10pF,or specify | ±10ppm,±20ppm,or specify | -20~70℃ -40~85℃ | 4 pads |
| Series | Frequency Range | Mounting | Package | Supply Voltage | Output | Temp Range | |
| CJO01 Oscillator | 4MHz~100MHz | Metal can | DIP14 | 2.25~5.5V | CMOS | -10~60℃ -20~70℃ -40~85℃ | |
| CJO02 Oscillator | 4MHz~100MHz | Metal can | DIP8 | 2.25~5.5V | CMOS | -10~60℃ -20~70℃ -40~85℃ | |
| CJO03 Oscillator | 13.7KHz~166MHz | Ceramic SMD | 7.0*5.0*1.3mm | 1.7~5.5V | CMOS | -10~60℃ -20~70℃ -40~85℃ -40~105℃ | |
| CJO04 Oscillator | 13.7KHz~160MHz | Ceramic SMD | 5.0*3.2*1.2mm | 1.7~5.5V | CMOS | -10~60℃ -20~70℃ -40~85℃ -40~105℃ | |
| CJO05 Oscillator | 32.768KHz~125MHz | Ceramic SMD | 3.2*2.5*0.95mm | 1.7~5.5V | CMOS | -10~60℃ -20~70℃ -40~85℃ -40~105℃ | |
| CJO06 Oscillator | 32.768KHz~125MHz | Ceramic SMD | 2.5*2.0*0.85mm | 1.8~3.63V | CMOS | -10~60℃ -20~70℃ -40~85℃ | |
| CJO07 Oscillator | 1.5MHz~50MHz | Ceramic SMD | 2.05*1.65*0.75mm | 1.8~3.63V | CMOS | -10~60℃ -20~70℃ -40~85℃ | |
