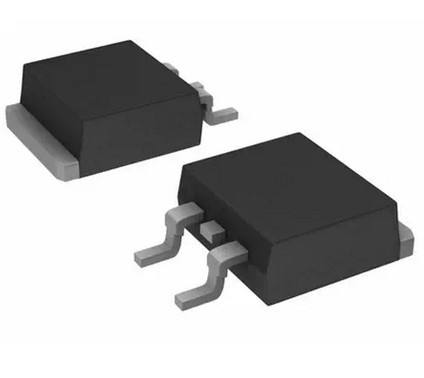

MOSFET
Feel free todownloadour SPEC table for MOSFET<HK B&M MOSFET SPEC Table<-Returnwww.bm-cs.comWhatsapp/Wechat:+86-18621961382Mail:sales@bm-cs.com or java.zhang@bm-cs.comPNPackageMOS P/NID(A)V(B
Feel free to download our SPEC table for MOSFET
<
| HK B&M MOSFET SPEC Table | ||||||||||
| <-Return | www.bm-cs.com | |||||||||
| Whatsapp/Wechat: +86-18621961382 Mail: sales@bm-cs.com or java.zhang@bm-cs.com | ||||||||||
| PN | Package | MOS P/N | ID(A) | V(BR)DSS (V) | RDS(on)(max)(Ω) | ID（A） | VGS（V） | VGS(th) (V) | ID（μA） | Euqal Circuit |
| SCMP2011 | DFNWB2*2-6L-J | P MOS | -11 | -20 | 0.0235 | -7.2 | -4.5 | -0.45～-1.2 | -250 | MOS-10 |
| SCMP3009G | DFNWB2*2-6L-J | P MOS | -9 | -30 | 0.028 | -9 | -10 | -1～-3 | -250 | MOS-10 |
| SCM2004 | DFNWB2*2-6L-J | N MOS | 15 | 20 | 0.0075 | 4 | 4.5 | 0.5～1 | 250 | MOS-35 |
| SCM3005 | DFNWB2*2-6L-J | N MOS | 5 | 30 | 0.042 | 5 | 10 | 0.6～1 | 250 | MOS-31 |
| SCMN2012 | DFNWB2*2-6L-J | N MOS | 12 | 20 | 0.015 | 5 | 4.5 | 0.35～1 | 250 | MOS-35 |
| SCM1216 | DFNWB2x2-6L-J | P MOS | -16 | -12 | 0.021 | -6.7 | -4.5 | -0.4～-1 | -250 | MOS-10 |
| SCM1206 | DFNWB2x2-6L-J | P MOS | -6 | -12 | 0.045 | -3.5 | -4.5 | -0.5～-0.9 | -250 | MOS-10 |
| SCM1208 | DFNWB2x2-6L-J | P MOS | 8 | 12 | 0.028 | 5 | 4.5 | -0.4～-1 | 250 | MOS-10 |
| SCMP3009 | DFNWB2x2-6L-J | P MOS | -9 | -30 | 0.02 | -9 | -4.5 | -0.6～-1.5 | -250 | MOS-10 |
| SCM3005 | DFNWB2x2-6L-J | N MOS | 5 | 30 | 0.042 | 5 | 10 | 0.6～1 | 250 | MOS-31 |
| SCMN2012 | DFNWB2x2-6L-J | N MOS | 12 | 20 | 0.011 | 9.7 | 4.5 | 0.35～1 | 250 | MOS-35 |
| SCAB25N03 | PDFNWB3.3*3.3-8L | N MOS | 25 | 30 | 0.01 | 10 | 10 | 1～3 | 250 | MOS-21 |
| SCAB35N03 | PDFNWB3.3*3.3-8L | N MOS | 35 | 30 | 0.007 | 12 | 10 | 1～3 | 250 | MOS-21 |
| SCAB20N03 | PDFNWB3.3*3.3-8L | N MOS | 20 | 30 | 0.012 | 10 | 10 | 1～3 | 250 | MOS-21 |
| SCAB40N03 | PDFNWB3.3*3.3-8L | N MOS | 40 | 30 | 0.0065 | 20 | 10 | 1～2.5 | 250 | MOS-21 |
| SCAB55N03 | PDFNWB3.3*3.3-8L | N MOS | 55 | 30 | 0.0055 | 20 | 10 | 1～2.5 | 250 | MOS-21 |
| SCAB60N03 | PDFNWB3.3*3.3-8L | N MOS | 60 | 30 | 0.005 | 20 | 10 | 1～2.5 | 250 | MOS-21 |
| SCAB25N04 | PDFNWB3.3*3.3-8L | N MOS | 25 | 40 | 0.0095 | 10 | 10 | 1～3 | 250 | MOS-21 |
| SCAB35N10 | PDFNWB3.3*3.3-8L | N MOS | 35 | 100 | 0.014 | 12 | 10 | 1～3 | 250 | MOS-21 |
| SCAB25P03 | PDFNWB3.3*3.3-8L | P MOS | -25 | -30 | 0.02 | -10 | -10 | -1～-3 | -250 | MOS-22 |
| SCAB35P03 | PDFNWB3.3*3.3-8L | P MOS | -35 | -30 | 0.015 | -12 | -10 | -1～-2.5 | -250 | MOS-22 |
| SCAB20SN06 | DFNWB3*3-8L-C | N MOS | 20 | 60 | 0.009 | 12 | 10 | 1～2.5 | 250 | MOS-21 |
| SCAC20N03 | PDFNWB5*6-8L | N MOS | 20 | 30 | 0.012 | 10 | 10 | 1～3 | 250 | MOS-21 |
| SCAC80N03 | PDFNWB5*6-8L | N MOS | 80 | 30 | MOS-21 | |||||
| SCAC70SN15 | PDFNWB5*6-8L | N MOS | 74 | 150 | 0.0115 | 20 | 10 | 2～4 | 250 | MOS-21 |
| SCAC110SN06 | PDFNWB5*6-8L | N MOS | 110 | 60 | 0.003 | 20 | 10 | 1.3～2.5 | 250 | MOS-21 |
| SCAC30N07 | PDFNWB5*6-8L | N MOS | 30 | 70 | MOS-21 | |||||
| SCAC50N06 | PDFNWB5*6-8L | N MOS | 50 | 60 | 0.008 | 20 | 10 | 2～4 | 250 | MOS-21 |
| SCAC80SN10 | PDFNWB5*6-8L | N MOS | 80 | 100 | 0.0085 | 20 | 10 | 2～4 | 250 | MOS-21 |
| SCAC110SN10 | PDFNWB5*6-8L | N MOS | 110 | 100 | 0.005 | 20 | 10 | 2～4 | 250 | MOS-21 |
| SCAC70SN10 | PDFNWB5*6-8L | N MOS | 70 | 100 | 0.01 | 10 | 10 | 1～2.5 | 250 | MOS-21 |
| SCAC40N03 | PDFNWB5*6-8L | N MOS | 40 | 30 | 0.0065 | 20 | 10 | 1～2.5 | 250 | MOS-21 |
| SCAC40N04 | PDFNWB5*6-8L | N MOS | 40 | 40 | 0.0095 | 10 | 10 | 1～2.5 | 250 | MOS-21 |
| SCAC30SN06 | PDFNWB5*6-8L | N MOS | 30 | 60 | 0.0062 | 20 | 10 | 1.2～2.2 | 250 | MOS-21 |
| SCAC60N06 | PDFNWB5*6-8L | N MOS | 60 | 60 | 0.0024 | 20 | 10 | 1.2～2.4 | 250 | MOS-21 |
| SCAC70SN08 | PDFNWB5*6-8L | N MOS | 70 | 80 | 0.008 | 12 | 10 | 1～2.5 | 250 | MOS-21 |
| SCAC10TH10 | PDFNWB5*6-8L | N MOS | 100 | 100 | 0.008 | 12 | 10 | 1～2.5 | 250 | MOS-21 |
| SCAC13TH06 | PDFNWB5*6-8L | N MOS | 130 | 60 | 0.003 | 20 | 10 | 1～2.5 | 250 | MOS-21 |
| SCAC18TH03 | PDFNWB5*6-8L | N MOS | 180 | 30 | 0.0014 | 95 | 10 | 1～2 | 250 | MOS-21 |
| SCAC35N03 | PDFNWB5*6-8L | N MOS | 35 | 30 | 0.007 | 12 | 10 | 1～3 | 250 | MOS-21 |
| SCAC50P03 | PDFNWB5*6-8L | P MOS | -50 | -30 | 0.007 | -10 | -10 | -1～-2.5 | -250 | MOS-22 |
| SCAC20N10 | PDFNWB5*6-8L | N MOS | 20 | 100 | 0.031 | 15 | 10 | 1.3～2.5 | 250 | MOS-21 |
| SCAC10H02 | PDFNWB5*6-8L | N MOS | 100 | 20 | 0.002 | 20 | 4.5 | 0.5～1.2 | 250 | MOS-21 |
| SCAC10H03 | PDFNWB5*6-8L | N MOS | 100 | 30 | 0.0025 | 20 | 10 | 1.2～2.5 | 250 | MOS-21 |
| SCQ4407 | SOP-8 | P MOS | -12 | -30 | 0.013 | -12 | -10 | -1～-2.2 | -250 | MOS-22 |
| SCQ4407S | SOP-8 | P MOS | -11 | -30 | 0.015 | -10 | -10 | -1～-2.2 | -250 | MOS-22 |
| SCQ4435A | SOP-8 | P MOS | -9.1 | -30 | 0.022 | -9.1 | -10 | -1～-3 | -250 | MOS-22 |
| SCQ4435S | SOP-8 | P MOS | -7.3 | -30 | 0.024 | -7.3 | -10 | -1～-3 | -250 | MOS-22 |
| SCQ4459 | SOP-8 | P MOS | -6.5 | -30 | 0.046 | -6.5 | -10 | -1～-2.4 | -250 | MOS-22 |
| SCQ9435 | SOP-8 | P MOS | -5.1 | -30 | 0.06 | -4.6 | -10 | -1～-2 | -250 | MOS-22 |
| SCQ13N04 | SOP-8 | N MOS | 13.5 | 45 | 0.0095 | 15 | 10 | 1～2.2 | 250 | MOS-21 |
| SCQ20N03 | SOP-8 | N MOS | MOS-21 | |||||||
| SCQ08N03 | SOP-8 | N MOS | MOS-21 | |||||||
| SCQ17N03 | SOP-8 | N MOS | 17 | 30 | 0.0065 | 15 | 10 | 1～2.5 | 250 | MOS-21 |
| SCQ4406 | SOP-8 | N MOS | 10 | 30 | 0.012 | 12 | 10 | 1～3 | 250 | MOS-21 |
| SCQ4410 | SOP8 | N MOS | 7.5 | 30 | 0.0135 | 10 | 10 | 1～3 | 250 | MOS-21 |
| SCQ4438 | SOP8 | N MOS | 8.2 | 60 | 0.022 | 8.2 | 10 | 1～3 | 250 | MOS-21 |
| SCQ60P05 | SOP8 | P MOS | -5 | -60 | 0.08 | -5 | -10 | -1.5～-3.5 | -250 | MOS-22 |
| SCQ07N10 | SOP8 | N MOS | 7 | 100 | 0.028 | 7 | 10 | 1.2～3 | 250 | MOS-21 |
| SCT03N06 | SOT-223 | N MOS | 3 | 60 | 0.105 | 3 | 10 | 0.5～2 | 250 | MOS-1 |
| SCT04N15 | SOT-223 | N MOS | 4 | 150 | 0.16 | 4 | 10 | 1.5～2.5 | 250 | MOS-1 |
| 2N7002 | SOT-23 | N MOS | 0.115 | 60 | 5 | 0.5 | 10 | 1～2.5 | 250 | MOS-1 |
| 2N7002K | SOT-23 | N MOS | 0.34 | 60 | 5 | 0.5 | 10 | 1～2.5 | 1000 | MOS-5 |
| 2SK3018 | SOT-23 | N MOS | 0.1 | 30 | 8 | 0.01 | 4 | 0.8～1.5 | 100 | MOS-3 |
| BSS123 | SOT-23 | N MOS | 0.17 | 100 | 6 | 0.17 | 10 | 1～2.8 | 250 | MOS-1 |
| BSS138 | SOT-23 | N MOS | 0.22 | 50 | 3.5 | 0.22 | 10 | 0.8～1.5 | 1000 | MOS-1 |
| BSS84 | SOT-23 | P MOS | -0.13 | -50 | 10 | -0.1 | -5 | -0.9～-2 | -250 | MOS-2 |
| SC2301 | SOT-23 | P MOS | -2.3 | -20 | 0.112 | -2.8 | -4.5 | -0.4～-1 | -250 | MOS-2 |
| SC2301B | SOT-23 | P MOS | -2.3 | -20 | 0.12 | -2.6 | -4.5 | -0.4～-1 | -250 | MOS-2 |
| SC2301S | SOT-23 | P MOS | -2.3 | -20 | 0.112 | -2.8 | -4.5 | -0.4～-1 | -250 | MOS-2 |
| SC2302 | SOT-23 | N MOS | 2.1 | 20 | 0.06 | 3.6 | 4.5 | 0.65～1.2 | 50 | MOS-1 |
| SC2302S | SOT-23 | N MOS | 2.1 | 20 | 0.06 | 3.6 | 4.5 | 0.65～1.2 | 50 | MOS-1 |
| SC2303 | SOT-23 | P MOS | -1.9 | -30 | 0.19 | -1.9 | -10 | -1～-3 | -250 | MOS-2 |
| SC2304 | SOT-23 | N MOS | 3.3 | 30 | 0.06 | 3.2 | 10 | 1～2.2 | 250 | MOS-1 |
| SC2305 | SOT-23 | P MOS | -4.1 | -12 | 0.045 | -3.5 | -4.5 | -0.5～-0.9 | -250 | MOS-2 |
| SC2306 | SOT-23 | N MOS | 3.16 | 30 | 0.047 | 3.5 | 10 | 1～3 | 250 | MOS-1 |
| SC2307 | SOT-23 | P MOS | -2.7 | -30 | 0.088 | -3.5 | -10 | -1～-3 | -250 | MOS-2 |
| SC2310 | SOT-23 | N MOS | 3 | 60 | 0.105 | 3 | 10 | 0.5～2 | 250 | MOS-1 |
| SC2312 | SOT-23 | N MOS | 5 | 20 | 0.0318 | 5 | 4.5 | 0.45～1 | 250 | MOS-1 |
| SC2321 | SOT-23 | P MOS | -2.9 | -20 | 0.057 | -3.3 | -4.5 | -0.4～-0.9 | -250 | MOS-2 |
| SC2324 | SOT-23 | N MOS | 2 | 100 | 0.234 | 1.5 | 10 | 1.2～2.8 | 250 | MOS-1 |
| SC2333 | SOT-23 | P MOS | -6 | -12 | 0.028 | -5 | -4.5 | -0.4～-1 | -250 | MOS-2 |
| SC3134K | SOT-23 | N MOS | 0.75 | 20 | 0.38 | 0.65 | 4.5 | 0.35～1.1 | 250 | MOS-3 |
| SC3139K | SOT-23 | P MOS | -0.66 | -20 | 0.52 | -1 | -4.5 | -0.35～-1.1 | -250 | MOS-2 |
| SC3400 | SOT-23 | N MOS | 5.8 | 30 | 0.035 | 5.8 | 10 | 0.7～1.4 | 250 | MOS-1 |
| SC3400A | SOT-23 | N MOS | 5.8 | 30 | 0.032 | 5.8 | 10 | 0.7～1.4 | 250 | MOS-1 |
| SC3401 | SOT-23 | P MOS | -4.2 | -30 | 0.065 | -4.2 | -10 | -0.7～-1.3 | -250 | MOS-2 |
| SC3401A | SOT-23 | P MOS | -4.2 | -30 | 0.06 | -4.2 | -10 | -0.7～-1.3 | -250 | MOS-2 |
| SC3402 | SOT-23 | N MOS | 4 | 30 | 0.055 | 4 | 10 | 0.6～1.4 | 250 | MOS-1 |
| SC3404 | SOT-23 | N MOS | 5.8 | 30 | 0.03 | 5.8 | 10 | 1～3 | 250 | MOS-1 |
| SC3406 | SOT-23 | N MOS | 3.6 | 30 | 0.065 | 3.6 | 10 | 1～3 | 250 | MOS-1 |
| SC3407 | SOT-23 | P MOS | -4.1 | -30 | 0.06 | -4.1 | -10 | -1～-3 | -250 | MOS-2 |
| SC3415 | SOT-23 | P MOS | -4 | -20 | 0.05 | -4 | -4.5 | -0.3～-1 | -250 | MOS-8 |
| SC3420 | SOT-23 | N MOS | 6 | 20 | 0.024 | 6 | 10 | 0.5～1 | 250 | MOS-1 |
| SC3434 | SOT-23 | N MOS | 5 | 30 | 0.042 | 5 | 10 | 0.6～1 | 250 | MOS-1 |
| SC4459 | SOT-23 | P MOS | -5 | -30 | 0.046 | -5 | -10 | -1.4～-2.4 | -250 | MOS-2 |
| SC502K | SOT-23 | P MOS | -0.18 | -50 | 10 | -0.1 | -5 | -0.9～-2 | -250 | MOS-6 |
| SC8810 | SOT-23 | N MOS | 7 | 20 | 0.026 | 7 | 10 | 0.4～1 | 250 | MOS-7 |
| SC8820 | SOT-23 | N MOS | 7 | 20 | 0.021 | 7 | 10 | 0.5～1.1 | 250 | MOS-7 |
| SCK2305 | SOT-23-3L | P MOS | -4.1 | -12 | 0.045 | -3.5 | -4.5 | -0.5～-0.9 | -250 | MOS-2 |
| SCK3401A | SOT-23-3L | P MOS | -4.2 | -30 | 0.06 | -4.2 | -10 | -7～-1.3 | -250 | MOS-2 |
| SCK3407 | SOT-23-3L | P MOS | -4.1 | -30 | 0.06 | -4.1 | -10 | -1～-3 | -250 | MOS-2 |
| SCK3415 | SOT-23-3L | P MOS | -4 | -30 | 0.05 | -4 | -4.5 | -0.3～-1 | -250 | MOS-8 |
| SCK3401AH | SOT-23-3L | P MOS | -4.2 | -30 | 0.05 | -4 | -10 | -0.7～-1.3 | -250 | MOS-2 |
| SCK3400AH | SOT-23-3L | N MOS | 5.8 | 30 | 0.027 | 5.8 | 10 | -0.7～-1.3 | 250 | MOS-1 |
| SCK1211 | SOT-23-3L | P MOS | -11 | -12 | 0.025 | -6 | -4.5 | -0.4～-1 | -250 | MOS-2 |
| SCK1219 | SOT-23-3L | P MOS | -6 | -18 | 0.023 | -5 | -4.5 | -0.6 | -250 | MOS-2 |
| SCK2009 | SOT-23-3L | P MOS | -9 | -20 | 0.028 | -6 | -4.5 | -0.5～-1.2 | -250 | MOS-2 |
| SCK1508 | SOT-23-3L | N MOS | 8 | 15 | 0.0095 | 3 | 10 | 0.5～1 | 250 | MOS-1 |
| SCK8804 | SOT-23-3L | N MOS | 7 | 20 | 0.013 | 3 | 10 | 0.5～1 | 250 | MOS-3 |
| SCK2333 | SOT-23-3L(12R) | P MOS | -6 | -12 | 0.028 | -5 | -4.5 | -0.4～-1 | -250 | MOS-2 |
| SCK3400A | SOT-23-3L(12R) | N MOS | 5.8 | 30 | 0.032 | 5.8 | 10 | 0.7～1.4 | 250 | MOS-1 |
| SCL3407 | SOT-23-6L | P MOS | -4.1 | -30 | 0.06 | -4.1 | -10 | -1～-3 | -250 | MOS-10 |
| SCL3415 | SOT-23-6L | P MOS | -4 | -20 | 0.05 | -4 | -4.5 | -0.3～-1 | -250 | MOS-11 |
| SCL02N10 | SOT-23-6L | N MOS | 2 | 100 | 0.1 | 2 | 10 | 1～3 | 250 | MOS-35 |
| SCL4007 | SOT-23-6L | P MOS | -7 | -40 | 0.035 | -5 | -10 | -1.2～-2.5 | -250 | MOS-10 |
| SCL4008 | SOT-23-6L | N MOS | 8 | 40 | 0.022 | 7 | 10 | 1～2.5 | 250 | MOS-35 |
| SCL1206 | SOT-23-6L(12R) | P MOS | -6 | -12 | 0.045 | -3.5 | -4.5 | -0.5~-0.9 | -250 | MOS-36 |
| SCL2301 | SOT-23-6L(12R) | P MOS | -2.3 | -20 | 0.09 | -2.5 | -4.5 | -0.4~-1 | -250 | MOS-36 |
| SC3144KW | SOT-323 | N MOS | 3 | 30 | 0.5 | 0.6 | 4.5 | 0.5～1.5 | 250 | MOS-3 |
| 2N7002KW | SOT-323 | N MOS | 0.34 | 60 | 5 | 0.5 | 10 | 1~2.5 | 1000 | MOS-3 |
| 2N7002W | SOT-323 | N MOS | 0.115 | 60 | 5 | 0.5 | 10 | 1~2.5 | 250 | MOS-1 |
| 2SK1658 | SOT-323 | N MOS | 0.1 | 30 | 10 | 0.01 | 4 | 0.9~1.5 | 1 | MOS-3 |
| 2SK3018 | SOT-323 | N MOS | 0.1 | 30 | 8 | 0.01 | 4 | 0.8~1.5 | 100 | MOS-3 |
| BSS138W | SOT-323 | N MOS | 0.22 | 50 | 3.5 | 0.22 | 10 | 0.8~1.5 | 250 | MOS-1 |
| SC2101 | SOT-323 | P MOS | -1.4 | -20 | 0.1 | -1 | -4.5 | -0.45 | -250 | MOS-2 |
| SC2102 | SOT-323 | N MOS | 2.1 | 20 | 0.06 | 3.6 | 4.5 | 0.65~1.2 | 50 | MOS-1 |
| SC3134KW | SOT-323 | N MOS | 0.75 | 20 | 0.38 | 0.65 | 4.5 | 0.35~1.1 | 250 | MOS-3 |
| SC3139KW | SOT-323 | P MOS | -0.66 | -20 | 0.52 | -1 | -4.5 | -0.35~-1.1 | -250 | MOS-4 |
| SC502KW | SOT-323 | P MOS | -0.18 | -50 | 10 | -0.1 | -5 | -0.9~-2 | -250 | MOS-6 |
| SCW1012 | SOT-323 | N MOS | 0.5 | 20 | 0.7 | 0.6 | 4.5 | 0.45~1.2 | 250 | MOS-3 |
| 2N7002T | SOT-523 | N MOS | 0.115 | 60 | 5 | 0.5 | 10 | 1~2.5 | 250 | MOS-1 |
| 2SK3019 | SOT-523 | N MOS | 0.1 | 30 | 8 | 0.01 | 4 | 0.8~1.5 | 100 | MOS-3 |
| SC1012 | SOT-523 | N MOS | 0.5 | 20 | 0.7 | 0.6 | 4.5 | 0.45~1.2 | 250 | MOS-3 |
| SC4153 | SOT-523 | N MOS | 0.915 | 20 | 0.57 | 0.6 | 4.5 | 0.45~1.1 | 250 | |
| SCE3134K | SOT-523 | N MOS | 0.75 | 20 | 0.38 | 0.65 | 4.5 | 0.35-1.1 | 250 | MOS-3 |
| SCE3139K | SOT-523 | P MOS | -0.66 | -20 | 0.52 | -1 | -4.5 | -0.35~-1.1 | -250 | MOS-4 |
| 2SK3541 | SOT-723 | N MOS | 0.1 | 30 | 8 | 0.01 | 4 | 0.8~1.5 | 100 | MOS-3 |
| SC3134K | SOT-723 | N MOS | 0.75 | 20 | 0.38 | 0.65 | 4.5 | 0.35~1.1 | 250 | MOS-3 |
| SC3139K | SOT-723 | P MOS | -0.66 | -20 | 0.52 | -1 | -4.5 | -0.35~-1.1 | -250 | MOS-4 |
| 2N7002X | SOT89-3L | N MOS | 0.115 | 60 | 5 | 0.5 | 10 | 1~2.5 | 250 | MOS-1 |
| SCA03N10 | SOT89-3L | N MOS | 3 | 100 | 0.14 | 5 | 10 | 1~2 | 250 | MOS-1 |
| SCA9451 | SOT89-3L | P MOS | -2.3 | -20 | 0.135 | -2.3 | -4.5 | -0.5~-1.5 | -250 | MOS-2 |
| SCA9452 | SOT89-3L | N MOS | 4 | 20 | 0.038 | 4 | 10 | 0.7~1.5 | 250 | MOS-1 |
| SCI02N60 | TO-126 | N MOS | 2 | 600 | 4.4 | 1 | 10 | 2~4 | 250 | MOS-1 |
| SCP13TH10 | TO-220-3L | N MOS | 135 | 100 | 0.004 | 60 | 10 | 2.5～4.5 | 250 | MOS-1 |
| SCP18TH10 | TO-220-3L | N MOS | 180 | 100 | 0.003 | 100 | 10 | 2.5～4.5 | 250 | MOS-1 |
| SCP80N07 | TO-220-3L | N MOS | 10 | 3～5 | MOS-1 | |||||
| SCP130SN10 | TO-220-3L | N MOS | 130 | 100 | 0.005 | 20 | 10 | 2～4 | 250 | MOS-1 |
| SCP100SN20 | TO-220-3L | N MOS | 100 | 200 | 0.011 | 20 | 10 | 2～4 | 250 | MOS-1 |
| SCP50P06 | TO-220-3L | P MOS | -50 | -60 | 0.023 | -20 | -10 | -2～-4 | -250 | MOS-2 |
| SCP01N80 | TO-220-3L | N MOS | 1 | 800 | 13.5 | 0.5 | 10 | 3~5 | 250 | MOS-1 |
| SCP02N60 | TO-220-3L | N MOS | 2 | 600 | 4.4 | 1 | 10 | 2~4 | 250 | MOS-1 |
| SCP02N65 | TO-220-3L | N MOS | 2 | 650 | 4.4 | 1 | 10 | 2~4 | 250 | MOS-1 |
| SCP02N80 | TO-220-3L | N MOS | 2.4 | 800 | 6.3 | 1.2 | 10 | 3~5 | 250 | MOS-1 |
| SCP04N60 | TO-220-3L | N MOS | 4 | 600 | 3 | 2 | 10 | 2~4 | 250 | MOS-1 |
| SCP04N60A | TO-220-3L | N MOS | 4 | 600 | 3 | 2 | 10 | 2~4 | 250 | MOS-1 |
| SCP04N65 | TO-220-3L | N MOS | 4 | 650 | 3 | 2 | 10 | 2~4 | 250 | MOS-1 |
| SCP05N60B | TO-220-3L | N MOS | 5 | 600 | 2.5 | 2.25 | 10 | 2~4 | 250 | MOS-1 |
| SCP07N60 | TO-220-3L | N MOS | 7 | 600 | 1.3 | 3.5 | 10 | 2~4 | 250 | MOS-1 |
| SCP07N65 | TO-220-3L | N MOS | 7.4 | 650 | 1.3 | 3.7 | 10 | 2~4 | 250 | MOS-1 |
| SCP08N60 | TO-220-3L | N MOS | 8 | 600 | 1.3 | 4 | 10 | 2~4 | 250 | MOS-1 |
| SCP08N65 | TO-220-3L | N MOS | 8 | 650 | 1.4 | 4 | 10 | 2~4 | 250 | MOS-1 |
| SCP10N60 | TO-220-3L | N MOS | 10 | 600 | 1 | 5 | 10 | 2~4 | 250 | MOS-1 |
| SCP10N65 | TO-220-3L | N MOS | 10 | 650 | 1 | 5 | 10 | 2~4 | 250 | MOS-1 |
| SCP12N60 | TO-220-3L | N MOS | 12 | 600 | 0.8 | 6 | 10 | 2~4 | 250 | MOS-1 |
| SCP12N65 | TO-220-3L | N MOS | 12 | 650 | 0.85 | 6 | 10 | 2~4 | 250 | MOS-1 |
| IRF630 | TO-220-3L | N MOS | 9.3 | 200 | 0.4 | 5.4 | 10 | 2~4 | 250 | MOS-1 |
| IRF640 | TO-220-3L | N MOS | 18 | 200 | 0.18 | 11 | 10 | 2~4 | 250 | MOS-1 |
| IRF730 | TO-220-3L | N MOS | 5.5 | 400 | 1 | 3.3 | 10 | 2~4 | 250 | MOS-1 |
| IRF740 | TO-220-3L | N MOS | 10 | 400 | 0.55 | 5.2 | 10 | 2~4 | 250 | MOS-1 |
| IRF830 | TO-220-3L | N MOS | 4.5 | 500 | 1.5 | 2.7 | 10 | 2~4 | 250 | MOS-1 |
| IRF840 | TO-220-3L | N MOS | 8 | 500 | 0.85 | 4.8 | 10 | 2~4 | 250 | MOS-1 |
| SCP15H03 | TO-220-3L-C | N MOS | 150 | 30 | 0.003 | 10 | 4.5 | 1.2~2.5 | 250 | MOS-1 |
| SCP50N06 | TO-220-3L-C | N MOS | 50 | 60 | 0.02 | 20 | 10 | 1.5~2.5 | 250 | MOS-1 |
| SCP55H12 | TO-220-3L-C | N MOS | 120 | 55 | 0.0055 | 40 | 10 | 2.0~4.0 | 250 | MOS-1 |
| SCP80N03 | TO-220-3L-C | N MOS | 80 | 30 | 0.0065 | 30 | 10 | 1~3 | 250 | MOS-1 |
| SCP80N04 | TO-220-3L-C | N MOS | 80 | 40 | 0.007 | 20 | 10 | 1.2~2.5 | 250 | MOS-1 |
| SCP85N80 | TO-220-3L-C | N MOS | 80 | 85 | 0.0068 | 40 | 10 | 2~4 | 250 | MOS-1 |
| SCPF02N60 | TO-220F | N MOS | 2 | 600 | 4.4 | 1 | 10 | 2～4 | 250 | MOS-1 |
| SCPF02N65 | TO-220F | N MOS | 2 | 650 | 4.4 | 1 | 10 | 2～4 | 250 | MOS-1 |
| SCPF03N80 | TO-220F | N MOS | 3 | 800 | 4.2 | 1.5 | 10 | 3~4.5 | 250 | MOS-1 |
| SCPF04N60 | TO-220F | N MOS | 4 | 600 | 3 | 2 | 10 | 2～4 | 250 | MOS-1 |
| SCPF04N60A | TO-220F | N MOS | 4 | 600 | 3 | 2 | 10 | 2～4 | 250 | MOS-1 |
| SCPF04N65 | TO-220F | N MOS | 4 | 650 | 3 | 2 | 10 | 2～4 | 250 | MOS-1 |
| SCPF04N70B | TO-220F | N MOS | 4.4 | 700 | 2.8 | 2.2 | 10 | 2~4 | 250 | MOS-1 |
| SCPF04N70 | TO-220F | N MOS | 4.4 | 700 | 2.8 | 2.2 | 10 | 2~4 | 250 | MOS-1 |
| SCPF04N80 | TO-220F | N MOS | 4 | 800 | 3 | 2 | 10 | 3～5 | 250 | MOS-1 |
| SCPF05N60B | TO-220F | N MOS | 5 | 600 | 2.5 | 2.25 | 10 | 2～4 | 250 | MOS-1 |
| SCPF05N65 | TO-220F | N MOS | 5 | 650 | 2.4 | 2.5 | 10 | 2～4 | 250 | MOS-1 |
| SCPF06N70 | TO-220F | N MOS | 6 | 700 | 1.8 | 3 | 10 | 2~4 | 250 | MOS-1 |
| SCPF07N60 | TO-220F | N MOS | 7 | 600 | 1.3 | 3.5 | 10 | 2～4 | 250 | MOS-1 |
| SCPF07N65 | TO-220F | N MOS | 7.4 | 650 | 1.3 | 3.7 | 10 | 2～4 | 250 | MOS-1 |
| SCPF08N60 | TO-220F | N MOS | 8 | 600 | 1.3 | 4 | 10 | 2～4 | 250 | MOS-1 |
| SCPF08N65 | TO-220F | N MOS | 8 | 650 | 1.4 | 4 | 10 | 2～4 | 250 | MOS-1 |
| SCPF08N80 | TO-220F | N MOS | 8 | 800 | 1.45 | 4 | 10 | 3~5 | 250 | MOS-1 |
| SCPF10N60 | TO-220F | N MOS | 10 | 600 | 1 | 5 | 10 | 2～4 | 250 | MOS-1 |
| SCPF10N65 | TO-220F | N MOS | 10 | 650 | 1 | 5 | 10 | 2～4 | 250 | MOS-1 |
| SCPF12N65 | TO-220F | N MOS | 12 | 650 | 0.85 | 6 | 10 | 2～4 | 250 | MOS-1 |
| IRFF640 | TO-220F | N MOS | 18 | 200 | 0.18 | 11 | 10 | 2～4 | 250 | MOS-1 |
| SCPF55P30 | TO-220F | P MOS | -30 | -55 | 0.04 | -15 | -10 | -2～-4 | -250 | MOS-2 |
| SCD01N65B | TO-251-3L | N MOS | 1 | 650 | 14 | 0.6 | 10 | 2～4 | 250 | MOS-1 |
| SCD01N80 | TO-251-3L | N MOS | 1 | 800 | 13.5 | 0.5 | 10 | 3~5 | 250 | MOS-1 |
| SCD02N60 | TO-251-3L | N MOS | 2 | 600 | 4.4 | 1 | 10 | 2～4 | 250 | MOS-1 |
| SCD02N65 | TO-251-3L | N MOS | 2 | 650 | 4.4 | 1 | 10 | 2～4 | 250 | MOS-1 |
| SCD4410 | TO-251-3L | N MOS | 7.5 | 30 | 0.0135 | 10 | 10 | 1～3 | 250 | MOS-1 |
| SCD4435 | TO-251-3L | P MOS | -9.1 | -30 | 0.024 | -9.1 | -10 | -1～-3 | -250 | MOS-2 |
| SCD02N60 | TO-251S | N MOS | 2 | 600 | 4.4 | 1 | 10 | 2~4 | 250 | MOS-1 |
| SCD02N65 | TO-251S | N MOS | 2 | 650 | 4.4 | 1 | 10 | 2~4 | 250 | MOS-1 |
| SCD02N80 | TO-251S | N MOS | 2.4 | 800 | 6.3 | 1.2 | 10 | 3~5 | 250 | MOS-1 |
| SCD04N60 | TO-251S | N MOS | 4 | 600 | 3 | 2 | 10 | 2~4 | 250 | MOS-1 |
| SCD04N60A | TO-251S | N MOS | 4 | 600 | 3 | 2 | 10 | 2~4 | 250 | MOS-1 |
| SCD04N60B | TO-251S | N MOS | 4 | 600 | 3 | 2 | 10 | 2~4 | 250 | MOS-1 |
| SCD04N65 | TO-251S | N MOS | 4 | 650 | 3 | 2 | 10 | 2~4 | 250 | MOS-1 |
| SCD05N60B | TO-251S | N MOS | 5 | 600 | 2.5 | 2.25 | 10 | 2~4 | 250 | MOS-1 |
| SCD30N10 | TO-251S | N MOS | 30 | 100 | 0.031 | 15 | 10 | 1.3~2.5 | 250 | MOS-1 |
| SCU01N65B | TO-252-2L(4R) | N MOS | 1 | 650 | 14 | 0.6 | 10 | 2~4 | 250 | MOS-1 |
| SCU01N80 | TO-252-2L(4R) | N MOS | 1 | 800 | 13.5 | 0.5 | 10 | 3~5 | 250 | MOS-1 |
| SCU02N60 | TO-252-2L(4R) | N MOS | 2 | 600 | 4.4 | 1 | 10 | 2~4 | 250 | MOS-1 |
| SCU02N65 | TO-252-2L(4R) | N MOS | 2 | 650 | 4.4 | 1 | 10 | 2~4 | 250 | MOS-1 |
| SCU02N80 | TO-252-2L(4R) | N MOS | 2.4 | 800 | 6.3 | 1.2 | 10 | 3~5 | 250 | MOS-1 |
| SCU03N80 | TO-252-2L(4R) | N MOS | 3 | 800 | 4.2 | 1.5 | 10 | 3~4.5 | 250 | MOS-2 |
| SCU04N60 | TO-252-2L(4R) | N MOS | 4 | 600 | 3 | 2 | 10 | 2~4 | 250 | MOS-1 |
| SCU04N60A | TO-252-2L(4R) | N MOS | 4 | 600 | 3 | 2 | 10 | 2~4 | 250 | MOS-1 |
| SCU04N65 | TO-252-2L(4R) | N MOS | 4 | 650 | 3 | 2 | 10 | 2~4 | 250 | MOS-1 |
| SCU04N70B | TO-252-2L(4R) | N MOS | 4.4 | 700 | 2.8 | 2.2 | 10 | 2~4 | 250 | MOS-1 |
| SCU05N60B | TO-252-2L(4R) | N MOS | 5 | 600 | 2.5 | 2.25 | 10 | 2~4 | 250 | MOS-1 |
| SCU10N10 | TO-252-2L(4R) | N MOS | 9.6 | 100 | 0.14 | 5 | 10 | 1.2~2.5 | 250 | MOS-1 |
| SCU12P10 | TO-252-2L(4R) | P MOS | -12 | -100 | 0.25 | -6 | -10 | -1~-3 | -250 | MOS-2 |
| SCU18P10 | TO-252-2L(4R) | P MOS | -18 | -100 | 0.1 | -16 | -10 | -1~-3 | -250 | MOS-2 |
| SCU20N06 | TO-252-2L(4R) | N MOS | 20 | 60 | 0.045 | 20 | 10 | 1~3 | 250 | MOS-1 |
| SCU30N03 | TO-252-2L(4R) | N MOS | 30 | 30 | 0.014 | 15 | 10 | 1~2.5 | 250 | MOS-1 |
| SCU30N10 | TO-252-2L(4R) | N MOS | 30 | 100 | 0.031 | 15 | 10 | 1.3~2.5 | 250 | MOS-1 |
| SCU40N10 | TO-252-2L(4R) | N MOS | 40 | 100 | 0.017 | 28 | 10 | 2~4 | 250 | MOS-1 |
| SCU40P04 | TO-252-2L(4R) | P MOS | -40 | -40 | 0.014 | -12 | -10 | -1.5~-3 | -250 | MOS-2 |
| SCU4410 | TO-252-2L(4R) | N MOS | 7.5 | 30 | 0.0135 | 10 | 10 | 1~3 | 250 | MOS-1 |
| SCU4828 | TO-252-2L(4R) | N MOS | 4.5 | 60 | 0.056 | 4.5 | 10 | 1~3 | 250 | MOS-1 |
| SCU50N03 | TO-252-2L(4R) | N MOS | 50 | 30 | 0.016 | 20 | 5 | 1~3 | 250 | MOS-1 |
| SCU50N06 | TO-252-2L(4R) | N MOS | 50 | 60 | 0.02 | 20 | 10 | 1.5~2.5 | 250 | MOS-1 |
| SCU55P30 | TO-252-2L(4R) | P MOS | -30 | -55 | 0.04 | -15 | -10 | -2~-4 | -250 | MOS-2 |
| SCU60N04 | TO-252-2L(4R) | N MOS | 60 | 40 | 0.02 | 20 | 4.5 | 1.2~2.5 | 250 | MOS-1 |
| SCU75N06 | TO-252-2L(4R) | N MOS | 75 | 60 | 0.0115 | 30 | 10 | 2~4 | 250 | MOS-1 |
| SCU80N03 | TO-252-2L(4R) | N MOS | 80 | 30 | 0.01 | 24 | 5 | 1~3 | 250 | MOS-1 |
| SCU70SN10 | TO-252-2L | N MOS | 70 | 100 | 0.012 | 10 | 10 | 1～2.5 | 250 | MOS-1 |
| SCU110N03 | TO-252-2L | N MOS | 110 | 30 | 0.005 | 20 | 10 | 1～2.5 | 250 | MOS-1 |
| SCU17N20 | TO-252-2L | N MOS | 17 | 200 | 0.18 | 11 | 10 | 2～4 | 250 | MOS-1 |
| SCU68N07 | TO-252-2L | N MOS | ||||||||
| SCU15N10 | TO-252-2L | N MOS | 15 | 100 | 0.1 | 8 | 10 | 1～3 | 250 | MOS-1 |
| SCU12P06 | TO-252-2L | P MOS | -12 | -60 | 0.096 | -8 | -10 | -1～-3 | -250 | MOS-2 |
| SCB17N80C | TO-263-2L | N MOS | 17 | 800 | 0.25 | 8.5 | 10 | 2.9～3.9 | 250 | MOS-1 |
| SCB280SN08 | TO-263-2L | N MOS | 280 | 80 | 0.0026 | 8.5 | 10 | 2～4 | 250 | MOS-1 |
| SCB40N20 | TO-263-2L | N MOS | 40 | 200 | 0.041 | 20 | 10 | 2～4 | 250 | MOS-1 |
| SCB130SN10 | TO-263-2L | N MOS | 130 | 100 | 0.005 | 20 | 10 | 2～4 | 250 | MOS-1 |
| SCB110SN10 | TO-263-2L | N MOS | 110 | 100 | 0.01 | 10 | 10 | 1～2.5 | 250 | MOS-1 |
| SCB30P05 | TO-263-2L | P MOS | -30 | -55 | 0.04 | -15 | -10 | -2～-4 | -250 | MOS-2 |
| SCB08N65 | TO-263-2L | N MOS | 8 | 650 | 1.4 | 4 | 10 | 2~4 | 250 | MOS-1 |
| SCB85N80 | TO-263-2L | N MOS | 80 | 85 | 0.0068 | 40 | 10 | 2~4 | 250 | MOS-1 |
| IRFB640 | TO-263-2L | N MOS | 18 | 200 | 0.18 | 11 | 10 | 2~4 | 250 | MOS-1 |
| IRFB830 | TO-263-3L | N MOS | 4.5 | 500 | 1.5 | 2.7 | 10 | 2~4 | 250 | MOS-1 |
| SCBF53N65C | TO-247 | N MOS | 53 | 650 | 0.069 | 26.5 | 10 | 3～4.5 | 250 | MOS-1 |
| SCBF17N80C | TO-247 | N MOS | 17 | 800 | 0.25 | 8.5 | 10 | 2.9～3.9 | 250 | MOS-1 |
| 2N7000 | TO-92 | N MOS | 0.2 | 60 | 5 | 0.5 | 10 | 0.8~3 | 1000 | MOS-1 |
| 2N7002K | TO-92 | N MOS | 0.34 | 60 | 5 | 0.5 | 10 | 1~2.5 | 250 | MOS-1 |
| SCV01N65B | TO-92 | N MOS | 1 | 650 | 14 | 0.6 | 10 | 2~4 | 250 | MOS-1 |
| SCAA3134K | WBFBP-03E | N MOS | 0.75 | 20 | 0.38 | 0.65 | 4.5 | 0.35~1.1 | 250 | MOS-3 |
| SCAA3139K | WBFBP-03E | P MOS | -0.66 | -20 | 0.52 | -1 | -4.5 | -0.35~-1.1 | -250 | MOS-4 |
| SCBA3134K | DFN1006-3L | N MOS | 0.75 | 20 | 0.5 | 0.15 | 4.5 | 0.35～1.1 | 250 | MOS-3 |
| SCBA3139K | DFN1006-3L | P MOS | -0.66 | -20 | 0.52 | -1 | -4.5 | -0.35～-1.1 | -250 | MOS-4 |
| SCBA7002K | DFN1006-3L | N MOS | 0.41 | 60 | 1.5 | 0.04 | 10 | 1.3～2.3 | 250 | MOS-3 |
| SCAD2338 | DFNWB1*1-3L | N MOS | 2.3 | 20 | 0.048 | 3 | 4.5 | 1～1.5 | 250 | MOS-1 |
