OLED display has its own advantage, and good for various equipment, and provide information window between people and machine. The following table is the supported model's spec from B&M, feel
OLED display has its own advantage, and good for various equipment, and provide information window between people and machine. The following table is the supported model's spec from B&M, feel free to contact for details.
One-stop Solution Partner for Display Devices, Professional+Fast+Cost Effective
Download the SPEC table.
| PN | Size | Resolution | Outline(mm) | Active Area | IC | Interface |
| BL120-96x96-PB01 | 1.2" | 96*96 | 25.8*30.1*1.227 | 20.135*20.14 | SSD1351Z | 8/16-bit 8080-series Parallel Interface Serial Peripheral Interface |
| BL129-128x96-PB01 | 1.29" | 128*96 | 33*25.8*1.24 | 26.279*19.708 | SSD1351 | 8/16/18-bit 6800/8080-series Parallel Interface Serial Peripheral Interface |
| BL139-454x454-PB01 | 1.39" | 454*454 | 39.41*39.61*0.748 | 35.41*35.41 | RM6D010 | MIPI 1-lane |
| BL146-128x128-PB01 | 1.46" | 128*128 | 33.5*33.51*1.61 | 26.279*26.284 | SSD1351 | 8/16/18-bit 6800/8080-series Parallel Interface Serial Peripheral Interface |
| BL150-128x128-PA01 | 1.5" | 128*128 | 33.8*36.5*1.41 | 26.86*26.86 | SSD1327Z | 8-bit 6800/8080-series Parallel Interface Serial Peripheral Interface IIC Interface |
| BL160-128x64-PB01 | 1.6" | 128*64 | 41.9*28*1.61 | 36.45*18.21 | SSD1325 | 8/16/18-bit 6800/8080-series Parallel Interface Serial Peripheral Interface |
| BL177-160x128-PB01 | 1.77" | 160*128 | 42.7*33.4*2.01 | 35.015*28.012 | SSD1353 | 8/16/18-bit 6800/8080-series Parallel Interface Serial Peripheral Interface |
| BL226-16x2-PA01 | 2.26" | 16*2 | 67.2*17.5*2.027 | 56.22*11.52 | SSD1311 | 8-bit 6800/8080-series parallel interface Serial Peripheral Interface IIC Interface. |
| BL223-128x32-PA01 | 2.23" | 128*32 | 62*24*2.427 | 55.02*13.1 | SSD1305 | 8-bit 6800/8080-series parallel interface Serial Peripheral Interface IIC Interface. |
| BL240-128x64-PA01 | 2.4" | 128*64 | 60.5*37*2.027 | 55.01*27.49 | SPD0301 | 8-bit 6800/8080-series parallel interface Serial Peripheral Interface IIC Interface. |
| BL293-20x2-PA01 | 2.93" | 20*2 | 83*19*2.027 | 73.52*11.52 | SSD1311 | 8-bit 6800/8080-series parallel interface Serial Peripheral Interface IIC Interface. |
| BL087-128x32-PD01 | 0.87" | 128*32 | 29*8.7*1.25 | 21.36*5.32 | SSD1316Z | IIC Interface |
| BL091-128x32-PD01 | 0.91" | 128*32 | 30*11.5*1.2 | 22.384*5.584 | SSD1306 | IIC Interface |
| BL096-64x128-PD01 | 0.96" | 64*128 | 14*28*1.22 | 10.86*21.74 | SH1107 | 4-wire SPI IIC |

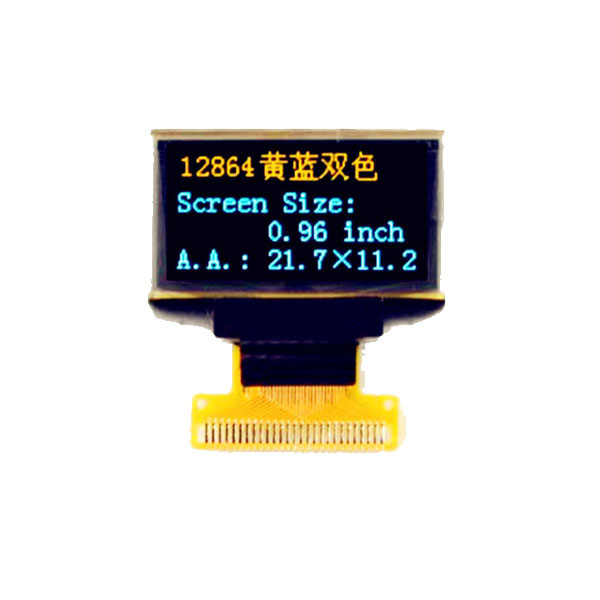

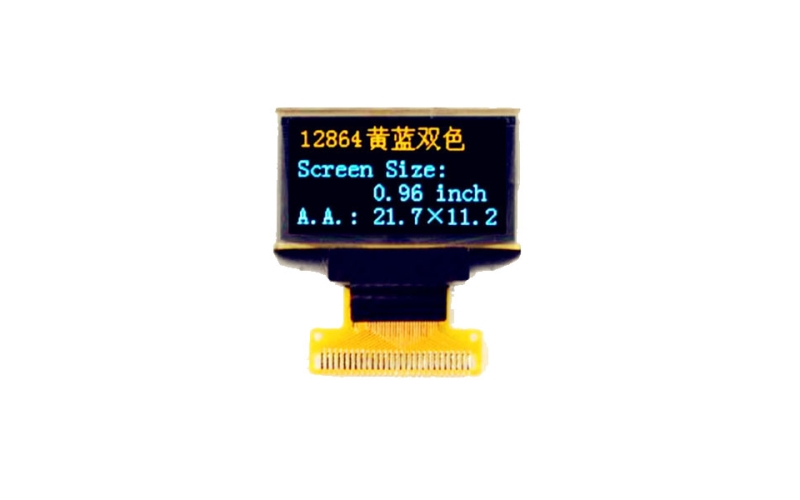

| BL096-128x64-PD02 | 0.96" | 128*64 | 24.7*16.9*1.42 | 21.74*10.86 | SSD1315 | 3/4-wire SPI IIC |
| BL096-128x64-PA01 | 0.96" | 128*64 | 26.7*19.26*1.2 | 21.744*11.204 | SSD1306 | 8-bit 6800/8080-series parallel interface Serial Peripheral Interface IIC Interface. |
| BL109-64x128-PE01 | 1.09" | 64*128 | 14*31.96*1.22 | 10.86*25.58 | CH1115 | 4-wire SPI |
| BL129-128x64-PA01 | 1.29" | 128*64 | 32.42*21.36*1.427 | 29.42*14.7 | SSD1315 | 8-bit 6800/8080-series parallel interface 4-wire SPI IIC Interface. |
