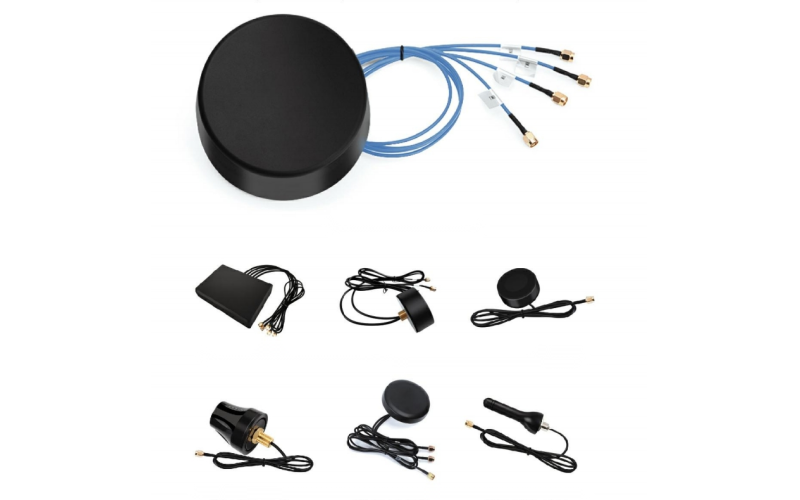

Cabinet external antenna 5G/4G/NB-IoT/GMS GNSS,WIFI,Lora
Technical Specification:

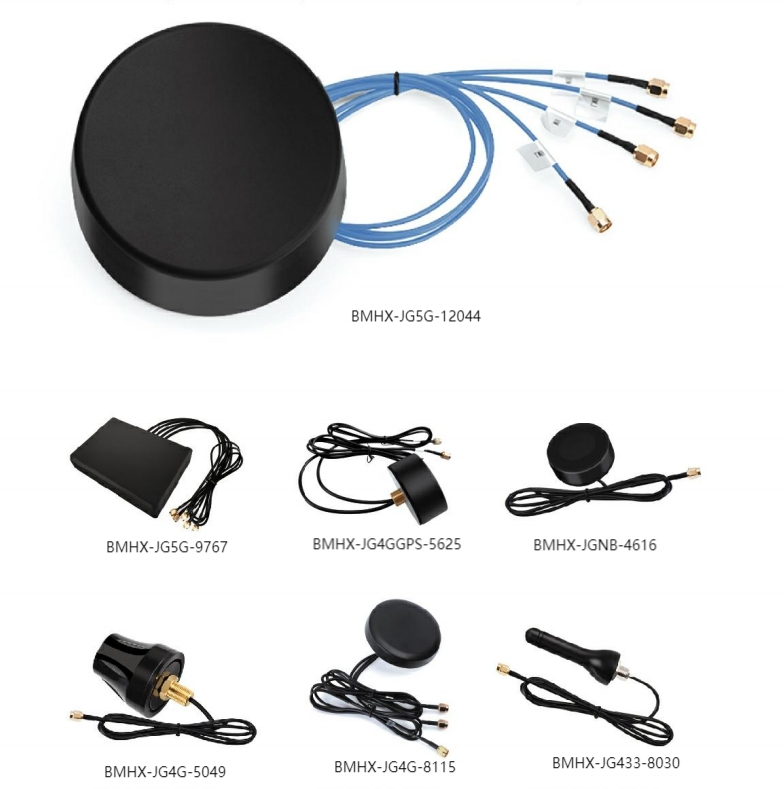

| Part Number: | BMHX-JG5G-12044 | BMHX-JG5G-9767 | BMHX-JG4GGPS-5625 | BMHX-JGNB-4616 | BMHX-JG4G-5049 | BMHX-JG4G-8115 | BMHX-JG433-8030 |
| Type: | 5G/4G/NB-IoT/GMS GNSS,WIFI,Lora | 5G/4G/NB-IoT/GMS GNSS,WIFI,Lora | 5G/4G/NB-IoT/GMS GNSS,WIFI,Lora | 5G/4G/NB-IoT/GMS GNSS,WIFI,Lora | 5G/4G/NB-IoT/GMS GNSS,WIFI,Lora | 5G/4G/NB-IoT/GMS GNSS,WIFI,Lora | 5G/4G/NB-IoT/GMS GNSS,WIFI,Lora |
| Application: | Cabinet, Vehicle | Cabinet, Vehicle | Cabinet, Vehicle | Cabinet, Vehicle | Cabinet, Vehicle | Cabinet, Vehicle | Cabinet, Vehicle |
| Supported Bands: | 5G/4G/NB-IoT/GSM 2.4G/5.8G GPS/beidou Lora 433M,470~510M | 5G/4G/NB-IoT/GSM 2.4G/5.8G GPS/beidou Lora 433M,470~510M | 5G/4G/NB-IoT/GSM 2.4G/5.8G GPS/beidou Lora 433M,470~510M | 5G/4G/NB-IoT/GSM 2.4G/5.8G GPS/beidou Lora 433M,470~510M | 5G/4G/NB-IoT/GSM 2.4G/5.8G GPS/beidou Lora 433M,470~510M | 5G/4G/NB-IoT/GSM 2.4G/5.8G GPS/beidou Lora 433M,470~510M | 5G/4G/NB-IoT/GSM 2.4G/5.8G GPS/beidou Lora 433M,470~510M |
| Product Type: | Cabinet external antenna | Cabinet external antenna | Cabinet external antenna | Cabinet external antenna | Cabinet external antenna | Cabinet external antenna | Cabinet external antenna |
| Effeciency | 40~80% | 40~78% | 40~72% | 40~70% | 40~75% | 40~75% | 40~72% |
| LNA Gain: | NA | NA | NA | NA | NA | NA | NA |
| Gain: | NA | NA | NA | NA | NA | NA | NA |
| Connector: | SMA, Customizable | SMA, Customizable | SMA, Customizable | SMA, Customizable | SMA, Customizable | SMA, Customizable | SMA, Customizable |
| Antenna Axis Rate: | NA | NA | NA | NA | NA | NA | NA |
| Center Phase Tol: | NA | NA | NA | NA | NA | NA | NA |
| Output VSWR: | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 |
| Direction of Polarization: | NA | NA | NA | NA | NA | NA | NA |
| Port Impedance: | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω |
| Water Proof: | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Size: | 120*44mm | 97*67mm | 56*25mm | 46*16mm | 50*49mm | 81*15mm | 80*30mm |

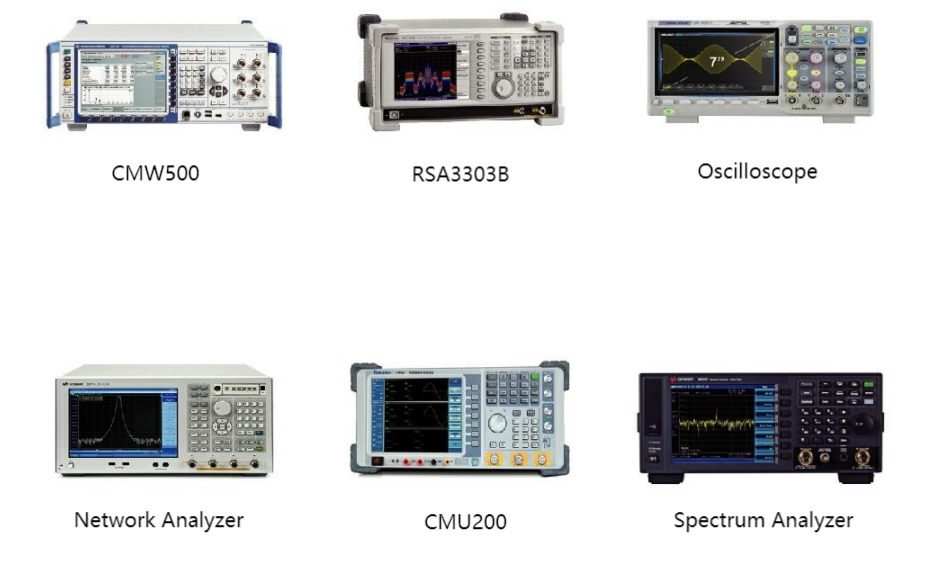

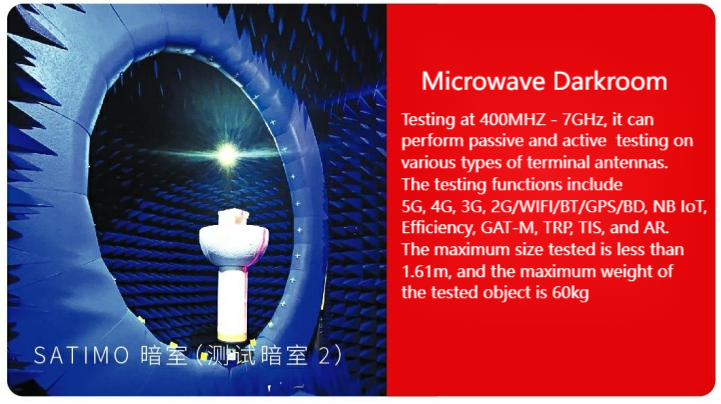

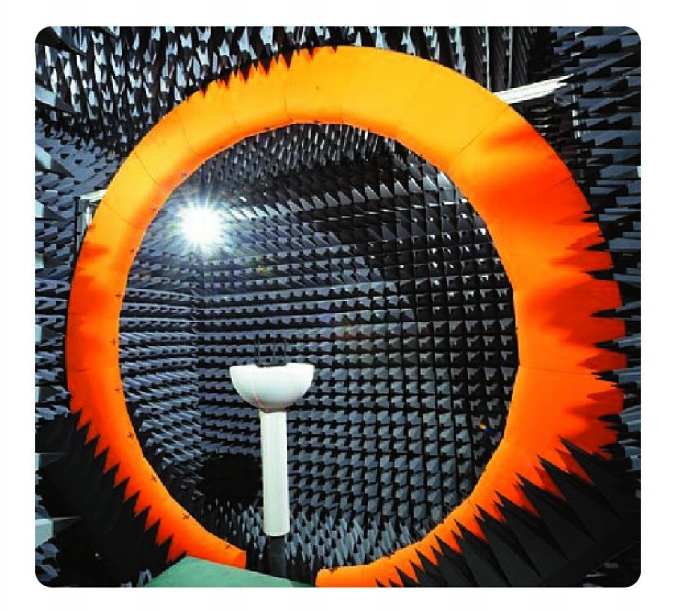

Antenna Testing Environment:
Antenna Modeling and Simulation:

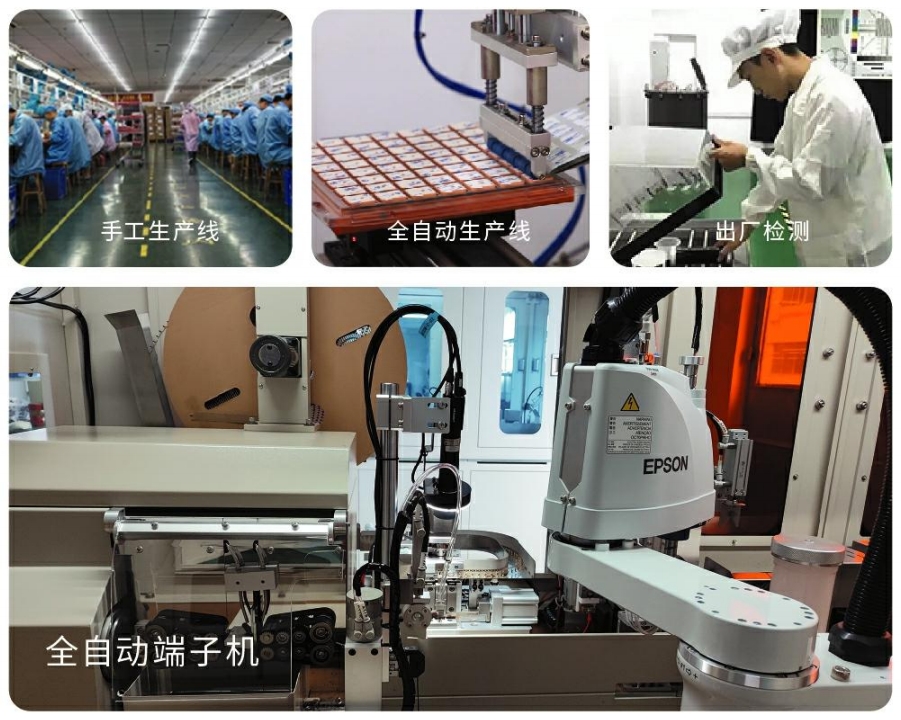

Antenna Manufacturing:
