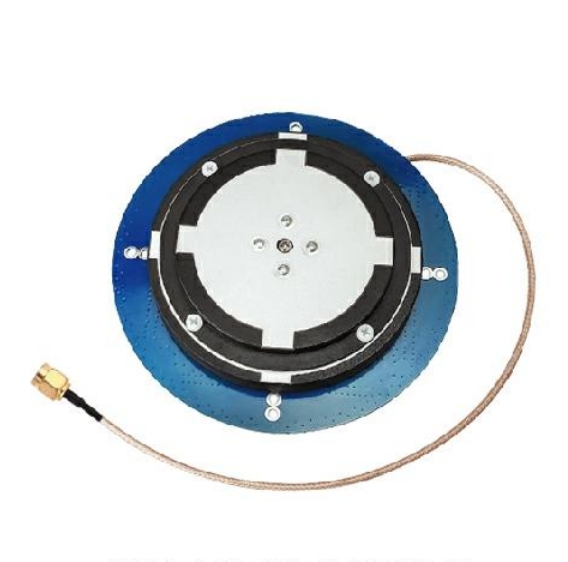

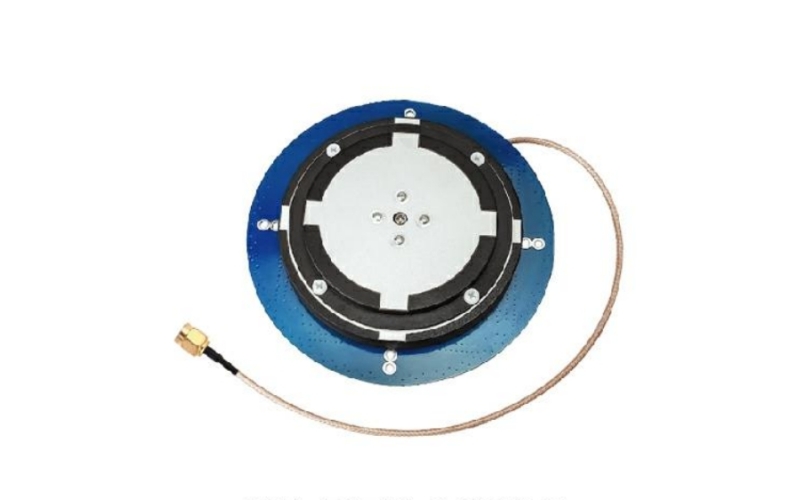

RTK antenna module
4 Satellites full frequency band high precision antenna
- Type： GNSS RTK
- Application： Vehicle, Robot, Drone, Construction, Boat
- Part Number： BMHX-RTK-12323
Technical Specification:
Supported Frequency Bands:
GPS: L1/L2/L5
GLONASS: L1/L2
Beidou: B1/B2/B3
GALILEO: E1/E2/E3/E4/E5a/E5b
Product Type:
4 Satellites 8 bands high precision antenna module
LNA Gain:
40±2(OTC)
Max Gain:
≥5.0dBi@Fc
Connector:
SMA-J, customizable
Antenna Axis Rate:
≤3.0dB
Center Phase Tol:
±2mm
Output VSWR:
≤2.0
Direction of Polarization:
right circle polarization
Port Impedance:
50Ω
Water Proof:
NA
Size:
φ123mm*23mm
