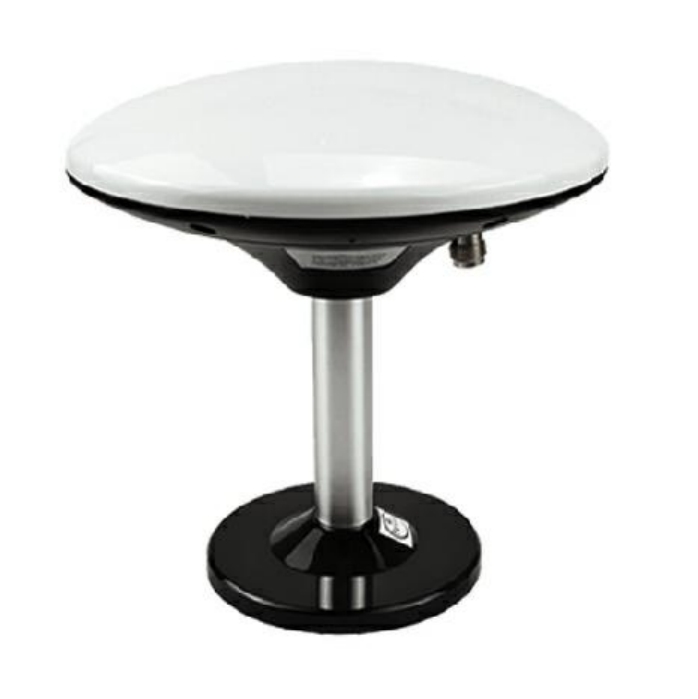

RTK high precision Antenna

Technical Specification:

    Supported Frequency Bands:

        GPS: L1/L2/L5/L6

        GLONASS: L1/L2/L5/L5R/L3PT/L2PT/L1CR/L1PT

        Beidou: B1/B2/B3

        GALILEO: E1/E2/E3/E4/E5a/E5b/E6

    Product Type:

        4 Satellites full frequency band high precision antenna

    LNA Gain:

        39~40dBi

    Max Gain:

        ≥5.0dBi@Fc

    Connector:

        TNC-K, can be customized

    Antenna Axis Rate:

        ≤3.0dB

    Center Phase Tol:

        ±2mm

    Output VSWR:

        ≤1.5

    Direction of Polarization:

        right circle polarization

    Port Impedance:

        50Ω

    Water Proof:

        IP67

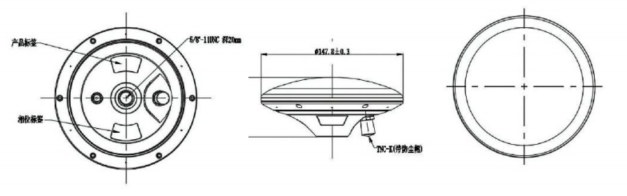

    Size:

        φ147.8mm*61.7mm

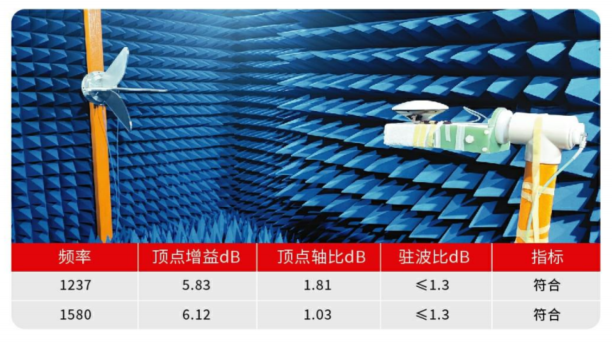

    Test Result:

    Antenna Testing Environment:

    Antenna Modeling and Simulation:

    Antenna Manufacturing:
