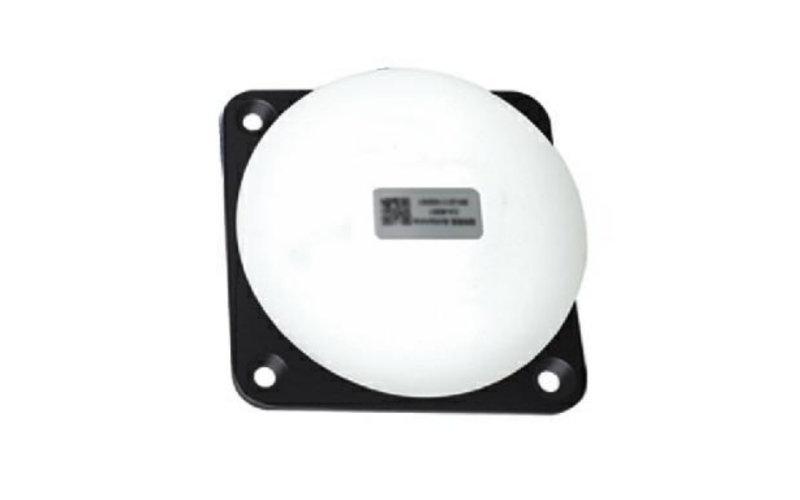

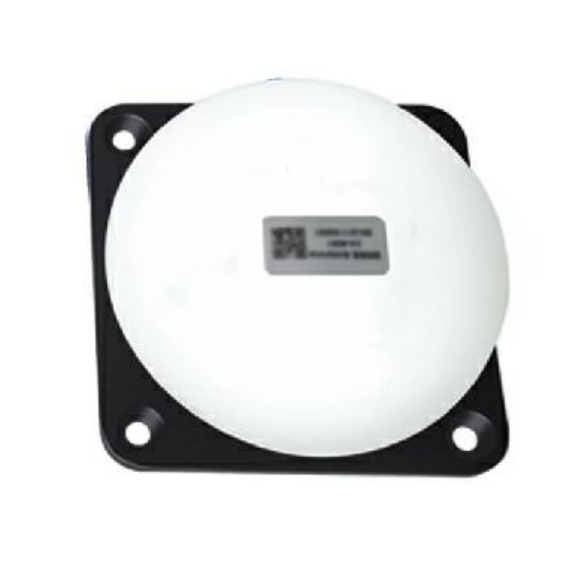

RTK packed antenna

Technical Specification:

    Supported Frequency Bands:

        GPS: L1/L2/L5

        GLONASS: L1/L2/L3

        Beidou: B1/B2/B3

        GALILEO: E1/E5/E6

    Product Type:

        4 Satellites full bands high precision antenna

    LNA Gain:

        40±3dBi

    Max Gain:

        ≥4.0dBi@Fc

    Connector:

        BNC-J, customizable

    Antenna Axis Rate:

        ≤1.5dB

    Center Phase Tol:

        ±2mm

    Output VSWR:

        ≤1.5

    Direction of Polarization:

        right circle polarization

    Port Impedance:

        50Ω

    Water Proof:

        IP67

    Size:

        96.5*27mm
