Glass steel antenna
Glass steel antenna 5G/4G/NB-IoT/GSM
- Type： 5G/4G/NB-IoT/GSM
- Application： Base station

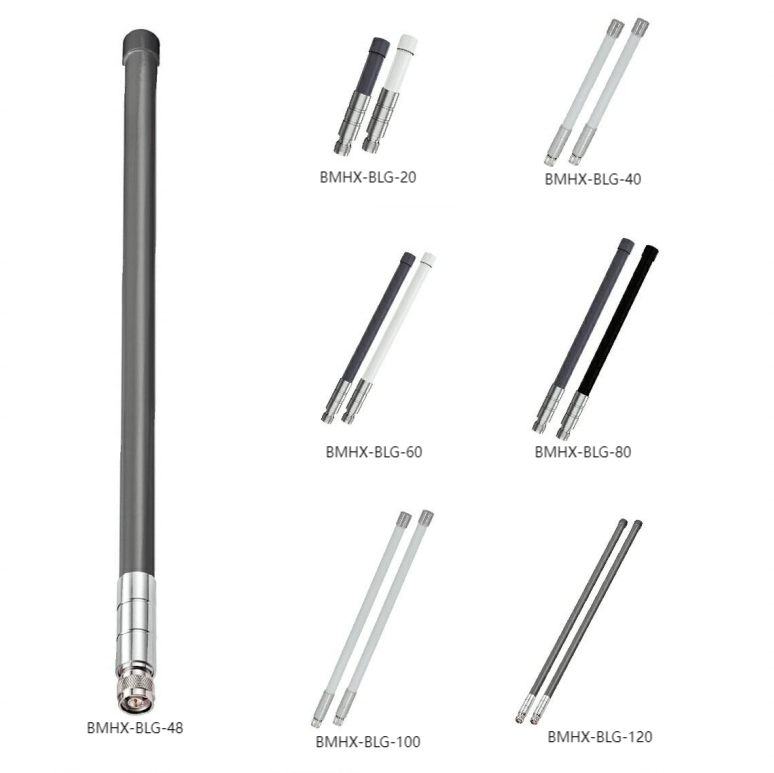

- Part Number： BMHX-BLG-48 BMHX-BLG-20 BMHX-BLG-40 BMHX-BLG-60 BMHX-BLG-80 BMHX-BLG-100 BMHX-BLG-120
Technical Specification:
| Product Name: | Glass steel antenna | Glass steel antenna | Glass steel antenna | Glass steel antenna | Glass steel antenna | Glass steel antenna | Glass steel antenna |
| Part Number: | BMHX-BLG-48 | BMHX-BLG-20 | BMHX-BLG-40 | BMHX-BLG-60 | BMHX-BLG-80 | BMHX-BLG-100 | BMHX-BLG-120 |
| Type: | 5G/4G/NB-IoT/GSM | 5G/4G/NB-IoT/GSM | 5G/4G/NB-IoT/GSM | 5G/4G/NB-IoT/GSM | 5G/4G/NB-IoT/GSM | 5G/4G/NB-IoT/GSM | 5G/4G/NB-IoT/GSM |
| Application: | Base station | Base station | Base station | Base station | Base station | Base station | Base station |
| Supported Bands: | 5G/4G/3G/GSM/NB-IoT 2.4G/5.8G/433M 470~510M/868M/915M | 5G/4G/3G/GSM/NB-IoT 2.4G/5.8G/433M 470~510M/868M/915M | 5G/4G/3G/GSM/NB-IoT 2.4G/5.8G/433M 470~510M/868M/915M | 5G/4G/3G/GSM/NB-IoT 2.4G/5.8G/433M 470~510M/868M/915M | 5G/4G/3G/GSM/NB-IoT 2.4G/5.8G/433M 470~510M/868M/915M | 5G/4G/3G/GSM/NB-IoT 2.4G/5.8G/433M 470~510M/868M/915M | 5G/4G/3G/GSM/NB-IoT 2.4G/5.8G/433M 470~510M/868M/915M |
| Product Type: | Glass steel antenna | Glass steel antenna | Glass steel antenna | Glass steel antenna | Glass steel antenna | Glass steel antenna | Glass steel antenna |
| Effeciency | NA | NA | NA | NA | NA | NA | NA |
| LNA Gain: | NA | NA | NA | NA | NA | NA | NA |
| Gain: | 5dBi | 4dBi | 5dBi | 8dBi | 10dBi | 11dBi | 12dBi |
| Connector: | thread | thread | thread | thread | thread | thread | thread |
| Antenna Axis Rate: | NA | NA | NA | NA | NA | NA | NA |
| Center Phase Tol: | NA | NA | NA | NA | NA | NA | NA |
| Output VSWR: | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 |
| Direction of Polarization: | NA | NA | NA | NA | NA | NA | NA |
| Port Impedance: | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω |
| Water Proof: | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Size: | 48cm | 20cm | 40cm | 60cm | 80cm | 100cm | 120cm |
