Lora:433M Wifi:2.4G/5.8G
Technical Specification:
| Product Name: | Discrete antenna | Discrete antenna | Discrete antenna | Discrete antenna | Discrete antenna | Discrete antenna | Discrete antenna | Discrete antenna | Discrete antenna | Discrete antenna |

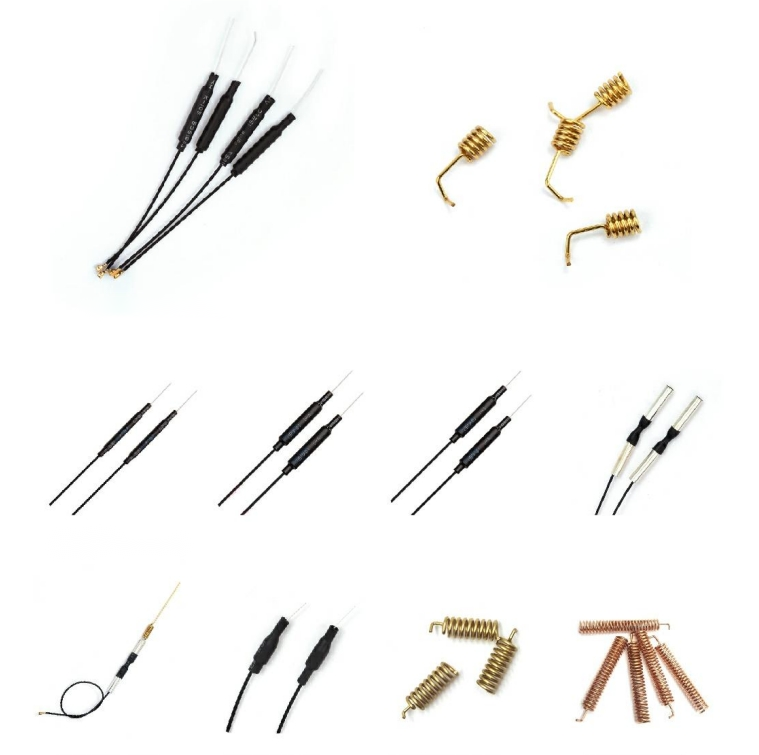

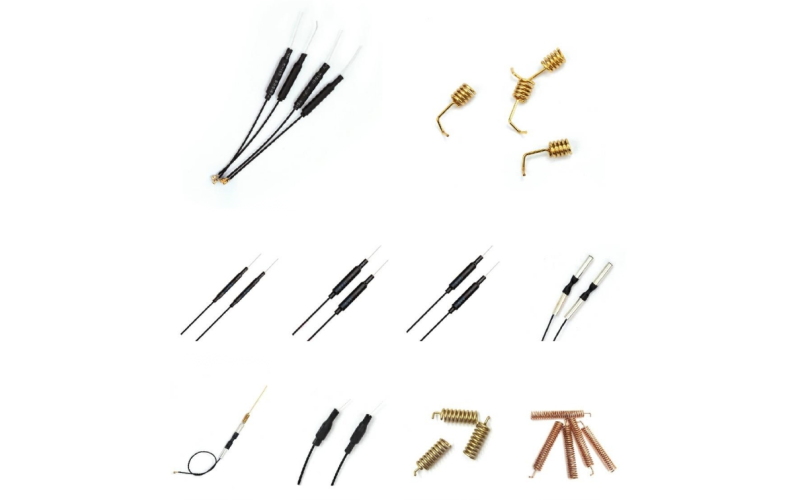

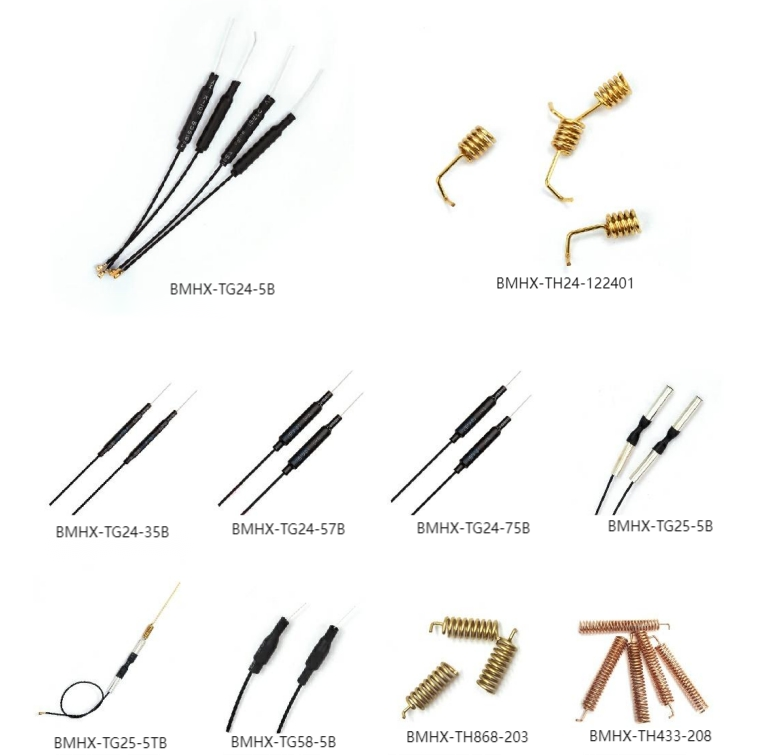

| Part Number: | BMHX-TG24-5B | BMHX-TH24-122401 | BMHX-TG24-35B | BMHX-TG24-57B | BMHX-TG24-75B | BMHX-TG25-5B | BMHX-TG25-5TB | BMHX-TG58-5B | BMHX-TH868-203 | BMHX-TH433-208 |
| Type: | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora |
| Application: | Remote Controller, Meter | Remote Controller, Meter | Remote Controller, Meter | Remote Controller, Meter | Remote Controller, Meter | Remote Controller, Meter | Remote Controller, Meter | Remote Controller, Meter | Remote Controller, Meter | Remote Controller, Meter |
| Supported Bands: | Wifi:2.4G | Wifi:2.4G | Wifi:2.4G | Wifi:2.4G | Wifi:2.4G | Wifi:2.4G/5.8G | Wifi:2.4G/5.8G | Wifi:5.8G | Lora:868M | Lora:433M |
| Product Type: | Discrete antenna | |||||||||
| Effeciency | 30-72% | 30-60% | 30-68% | 30-65% | 30-60% | 30-70% | 30-75% | 30-72% | 30-66% | 30-70% |
| LNA Gain: | NA | |||||||||
| Gain: | NA | |||||||||
| Connector: | IPEX,customizable | Solderable pin | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | Solderable pin | Solderable pin |
| Antenna Axis Rate: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Center Phase Tol: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Output VSWR: | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 |
| Direction of Polarization: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Port Impedance: | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω |
| Water Proof: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Size: | 25*5mm | 9.5*3mm | 25*3.5mm | 25*5.7mm | 25*7.5mm | 48*5mm | 91*5mm | 12*5mm | 17*5.5mm | 37*5.5mm |
Antenna Testing Environment:
Antenna Modeling and Simulation:
Antenna Manufacturing:
