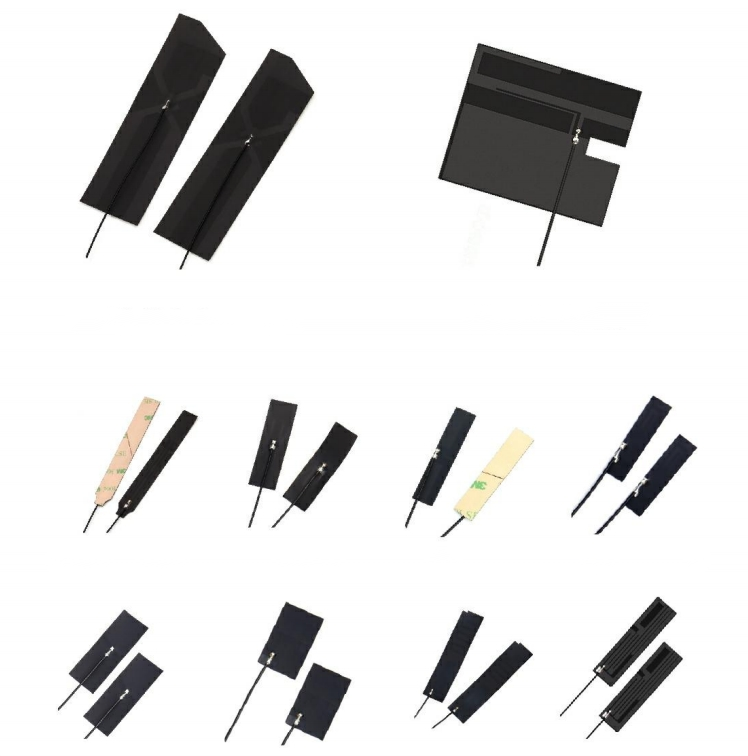

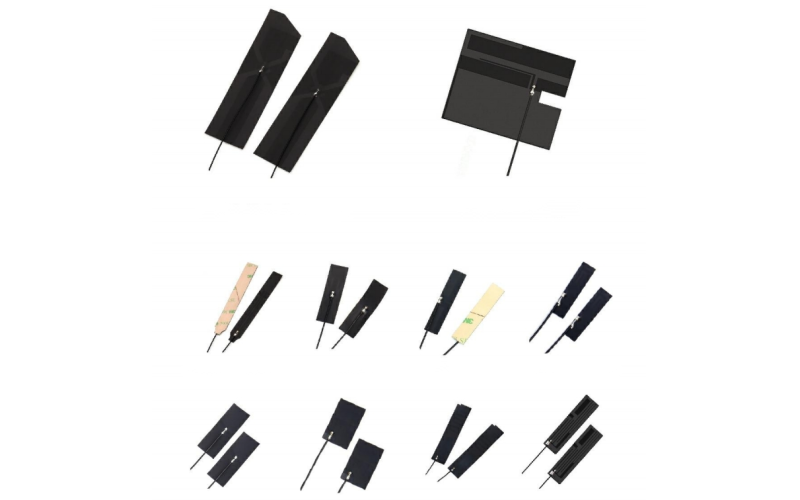

FPC antenna
telecom:5G/4G/3G/NB-IoT/GSM Wifi:2.4G
Technical Specification:
| Product Name: | FPC antenna | FPC antenna | FPC antenna | FPC antenna | FPC antenna | FPC antenna | FPC antenna | FPC antenna | FPC antenna | FPC antenna |
| Part Number: | BMHX-FPC5G-13337 | BMHX-FPC4G-6050 | BMHX-FPC5G-9414 | BMHX-FPC25-4614 | BMHX-FPC24-4510 | BMHX-FPCNB-328 | BMHX-FPC433-4618 | BMHX-FPC433-2717 | BMHX-FPC470-7217 | BMHX-FPC470-5514 |
| Type: | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora |
| Application: | tablet,watch,portable device | tablet,watch,portable device | tablet,watch,portable device | tablet,watch,portable device | tablet,watch,portable device | tablet,watch,portable device | tablet,watch,portable device | tablet,watch,portable device | tablet,watch,portable device | tablet,watch,portable device |
| Supported Bands: | telecom:5G/4G/3G/NB-IoT/GSM Wifi:2.4G | telecom:4G/3G/NB-IoT/GSM Wifi:2.4G | telecom:5G/4G/3G/NB-IoT/GSM Wifi:2.4G | Wifi:2.4G | Wifi:2.4G/5.8G | Telecom:NB-IoT/GSM | Lora:433M | Lora:433M | Lora:470M | Lora:470M |
| Product Type: | FPC antenna | FPC antenna | FPC antenna | FPC antenna | FPC antenna | FPC antenna | FPC antenna | FPC antenna | FPC antenna | FPC antenna |
| Effeciency | 30-80% | 30-64% | 30-72% | 30-52% | 30-60% | 30-48% | 30-54% | 30-49% | 30-65% | 30-56% |
| LNA Gain: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Gain: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Connector: | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable |
| Antenna Axis Rate: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Center Phase Tol: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Output VSWR: | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 |
| Direction of Polarization: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Port Impedance: | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω |
| Water Proof: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Size: | 133*37mm | 60*50mm | 94*14mm | 46*14mm | 45*10mm | 32*8mm | 46*18mm | 27*17mm | 72*17mm | 55*14mm |
