Ceramic discrete antenna
GPS:L1
beidou:B1
Glonass:L1
Technical Specification:
| Product Name: | Ceramic discrete antenna | Ceramic discrete antenna | Ceramic discrete antenna | Ceramic discrete antenna | Ceramic discrete antenna | Ceramic discrete antenna | Ceramic discrete antenna | Ceramic discrete antenna | Ceramic discrete antenna | Ceramic discrete antenna |

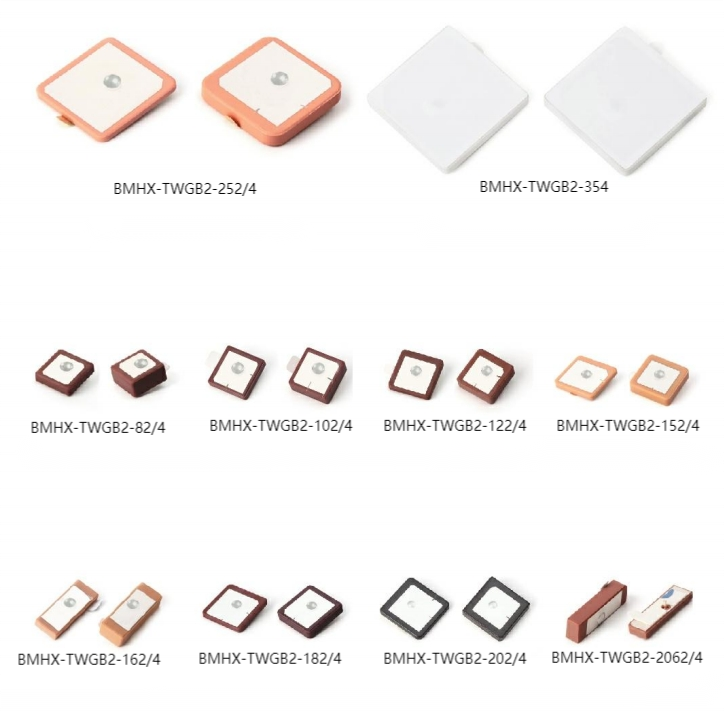

| Part Number: | BMHX-TWGB2-252/4 | BMHX-TWGB2-354 | BMHX-TWGB2-82/4 | BMHX-TWGB2-102/4 | BMHX-TWGB2-122/4 | BMHX-TWGB2-152/4 | BMHX-TWGB2-162/4 | BMHX-TWGB2-182/4 | BMHX-TWGB2-202/4 | BMHX-TWGB2-2062/4 |
| Type: | GNSS | GNSS | GNSS | GNSS | GNSS | GNSS | GNSS | GNSS | GNSS | GNSS |
| Application: | Vehicle,bike | Vehicle,bike | Vehicle,bike | Vehicle,bike | Vehicle,bike | Vehicle,bike | Vehicle,bike | Vehicle,bike | Vehicle,bike | Vehicle,bike |
| Supported Bands: | GPS:L1 beidou:B1 Glonass:L1 | GPS:L1 beidou:B1 Glonass:L1 | GPS:L1 beidou:B1 Glonass:L1 | GPS:L1 beidou:B1 Glonass:L1 | GPS:L1 beidou:B1 Glonass:L1 | GPS:L1 beidou:B1 Glonass:L1 | GPS:L1 beidou:B1 Glonass:L1 | GPS:L1 beidou:B1 Glonass:L1 | GPS:L1 beidou:B1 Glonass:L1 | GPS:L1 beidou:B1 Glonass:L1 |
| Product Type: | Ceramic discrete antenna | Ceramic discrete antenna | Ceramic discrete antenna | Ceramic discrete antenna | Ceramic discrete antenna | Ceramic discrete antenna | Ceramic discrete antenna | Ceramic discrete antenna | Ceramic discrete antenna | Ceramic discrete antenna |
| Effeciency | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| LNA Gain: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Gain: | 4.5dBi | 5dBi | -3.5dBi | -2.5dBi | -3.5dBi | 2dBi | -1.5dBi | 4dBi | 4.5dBi | -0.5dBi |
| Connector: | Solderable Pin | Solderable Pin | Solderable Pin | Solderable Pin | Solderable Pin | Solderable Pin | Solderable Pin | Solderable Pin | Solderable Pin | Solderable Pin |
| Antenna Axis Rate: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Center Phase Tol: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Output VSWR: | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 |
| Direction of Polarization: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Port Impedance: | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω |
| Water Proof: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Size: | 25*25*2/4mm | 35*35*8.6mm | 8*8*4.7/6.7mm | 10*10*2/4mm | 12*12*2/4mm | 15*15*2/4mm | 16*6*2/4mm | 18*18*2/4mm | 20*20*2/4mm | 20*6*2/4mm |
