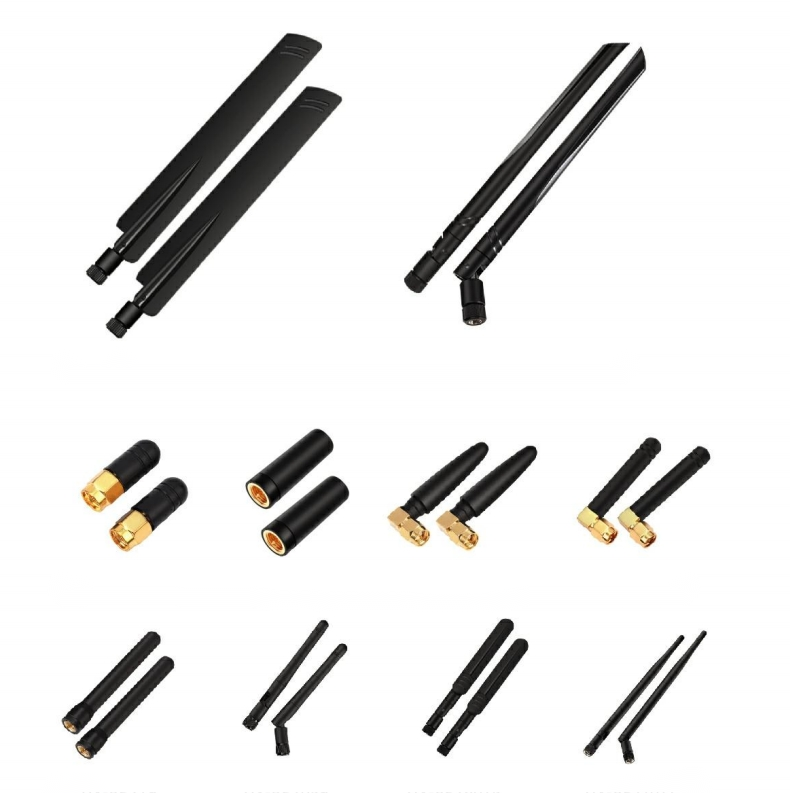

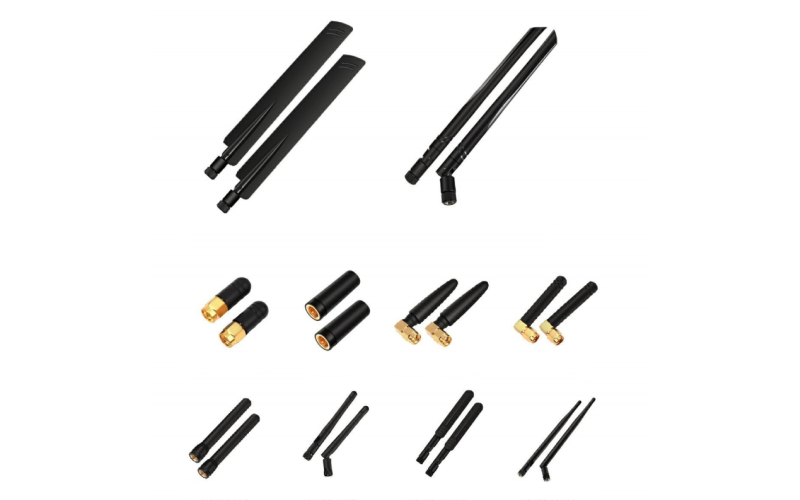

Plastic stick antenna
Telecom:5G/4G/NB-IoT/GSM Wifi:2.4G/5.8G Lora: 868M/915M/315M/433M/470~510M
Technical Specification:
| Product Name: | Plastic stick antenna | Plastic stick antenna | Plastic stick antenna | Plastic stick antenna | Plastic stick antenna | Plastic stick antenna | Plastic stick antenna | Plastic stick antenna | Plastic stick antenna | Plastic stick antenna |

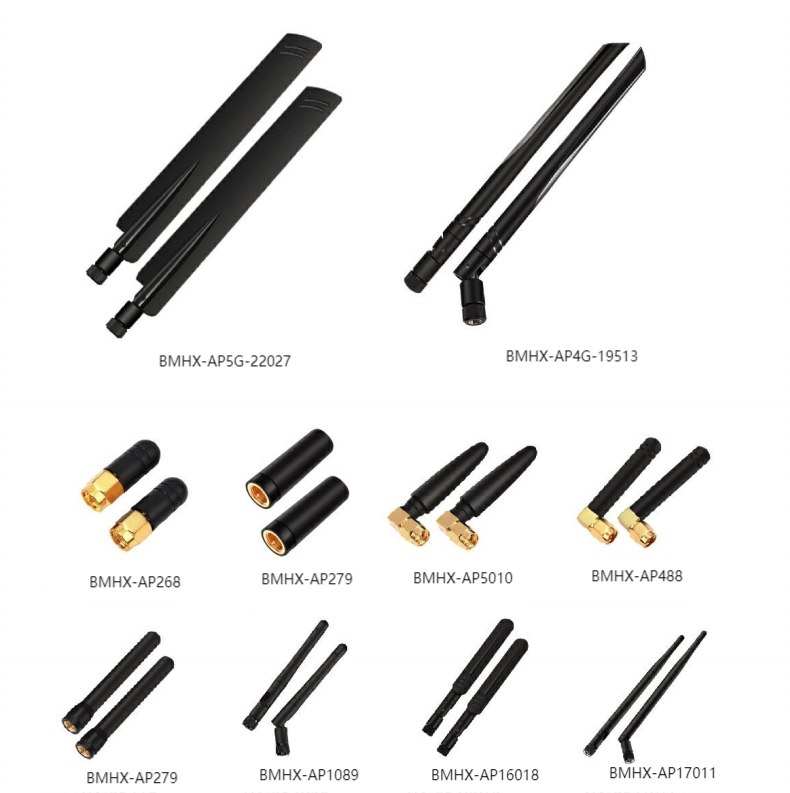

| Part Number: | BMHX-AP5G-22027 | BMHX-AP4G-19513 | BMHX-AP268 | BMHX-AP279 | BMHX-AP5010 | BMHX-AP488 | BMHX-AP279 | BMHX-AP1089 | BMHX-AP16018 | BMHX-AP17011 |
| Type: | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora |
| Application: | Router,Outdoor device, Monitor | Router,Outdoor device, Monitor | Router,Outdoor device, Monitor | Router,Outdoor device, Monitor | Router,Outdoor device, Monitor | Router,Outdoor device, Monitor | Router,Outdoor device, Monitor | Router,Outdoor device, Monitor | Router,Outdoor device, Monitor | Router,Outdoor device, Monitor |
| Supported Bands: | Telecom: 4G/5G | Telecom:5G/4G/NB-IoT/GSM Wifi:2.4G/5.8G Lora: 868M/915M/315M/433M/470~510M | Wifi:2.4G | Wifi:2.4G Lora:433M | Telecom:5G/4G/NB-IoT/GSM Wifi:2.4G/5.8G Lora: 868M/915M/315M/433M/470~510M | Telecom:5G/4G/NB-IoT/GSM Wifi:2.4G/5.8G Lora: 868M/915M/315M/433M/470~510M | Wifi:2.4G Lora:433M | Telecom:5G/4G/NB-IoT/GSM Wifi:2.4G/5.8G Lora: 868M/915M/315M/433M/470~510M | Wifi:2.4G Telecom:4G | Telecom:5G/4G/NB-IoT/GSM Wifi:2.4G/5.8G Lora: 868M/915M/315M/433M/470~510M |
| Product Type: | Plastic stick antenna | Plastic stick antenna | Plastic stick antenna | Plastic stick antenna | Plastic stick antenna | Plastic stick antenna | Plastic stick antenna | Plastic stick antenna | Plastic stick antenna | Plastic stick antenna |
| Effeciency | 40-82% | 40-78% | 40-75% | 40-75% | 40-75% | 40-75% | 40-78% | 40-81% | 40-81% | 40-76% |
| LNA Gain: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Gain: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Connector: | thread | thread | thread | thread | thread | thread | thread | thread | thread | thread |
| Antenna Axis Rate: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Center Phase Tol: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Output VSWR: | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 |
| Direction of Polarization: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Port Impedance: | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω |
| Water Proof: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Size: | 220*27mn | 195*13mm | 26*8mm | 27*9mm | 50*10mm | 48*8mm | 27*9mm | 108*9mm | 160*18mm | 170*10mm |
