RFID antenna
RFID antenna
NFC,RFID
- Type： NFC,RFID
- Application： Door controller, portable device

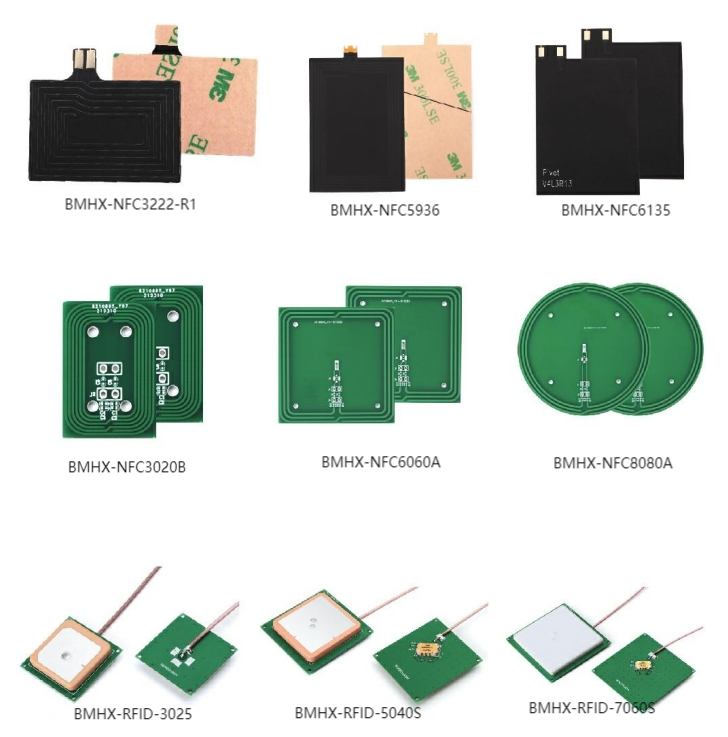

- Part Number： BMHX-NFC3222-R1 BMHX-NFC5936 BMHX-NFC6135 BMHX-NFC3020B BMHX-NFC6060A BMHX-NFC8080A BMHX-RFID-3025 BMHX-RFID-5040S BMHX-RFID-7060S
Technical Specification:
| Product Name: | RFID antenna | RFID antenna | RFID antenna | RFID antenna | RFID antenna | RFID antenna | RFID antenna | RFID antenna | RFID antenna |
| Part Number: | BMHX-NFC3222-R1 | BMHX-NFC5936 | BMHX-NFC6135 | BMHX-NFC3020B | BMHX-NFC6060A | BMHX-NFC8080A | BMHX-RFID-3025 | BMHX-RFID-5040S | BMHX-RFID-7060S |
| Type: | NFC,RFID | NFC,RFID | NFC,RFID | NFC,RFID | NFC,RFID | NFC,RFID | NFC,RFID | NFC,RFID | NFC,RFID |
| Application: | Door controller, portable device | Door controller, portable device | Door controller, portable device | Door controller, portable device | Door controller, portable device | Door controller, portable device | Door controller, portable device | Door controller, portable device | Door controller, portable device |
| Supported Bands: | NFC:13.56M | NFC:13.56M | NFC:13.56M | NFC:13.56M | NFC:13.56M | NFC:13.56M | RFID:868M/928M | RFID:868M/928M | RFID:868M/928M |
| Product Type: | RFID antenna | RFID antenna | RFID antenna | RFID antenna | RFID antenna | RFID antenna | RFID antenna | RFID antenna | RFID antenna |
| Effeciency | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| LNA Gain: | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Gain: | NA | NA | NA | NA | NA | NA | 1dBi | 3dBi | 5dBi |
| Connector: | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable |
| Antenna Axis Rate: | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Center Phase Tol: | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Output VSWR: | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 |
| Direction of Polarization: | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Port Impedance: | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω |
| Water Proof: | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Size: | 32*22mm | 59*36mm | 61*35mm | 30*20mm | 60*60mm | 80*80mm | 30*25*5.5mm | 50*40*5.5mm | 70*60*5.6mm |
Antenna Testing Environment:
Antenna Modeling and Simulation:
Antenna Manufacturing:
