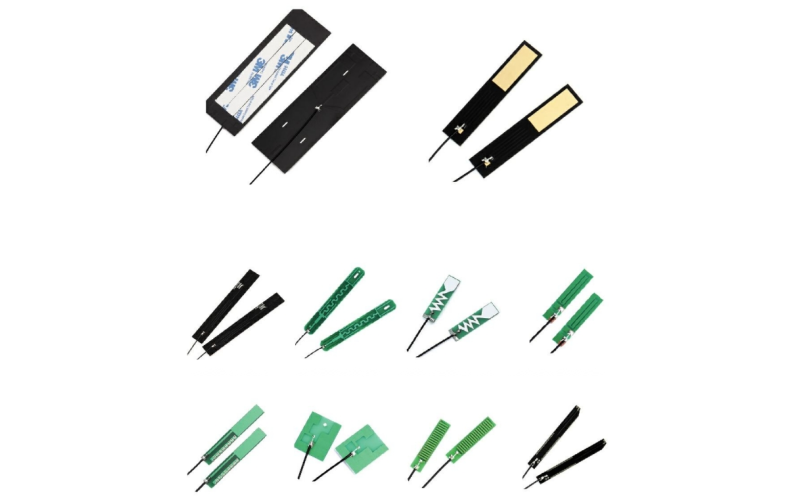

PCB antenna
telecom:5G/4G/3G/NB-IoT/GSM Wifi:2.4G
Technical Specification:
| Product Name: | PCB antenna | PCB antenna | PCB antenna | PCB antenna | PCB antenna | PCB antenna | PCB antenna | PCB antenna | PCB antenna | PCB antenna |

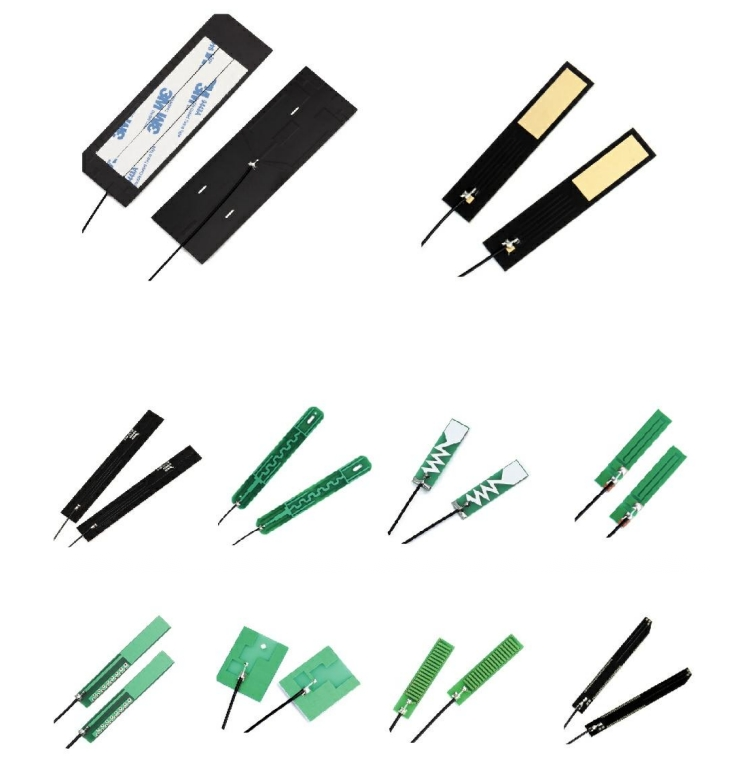

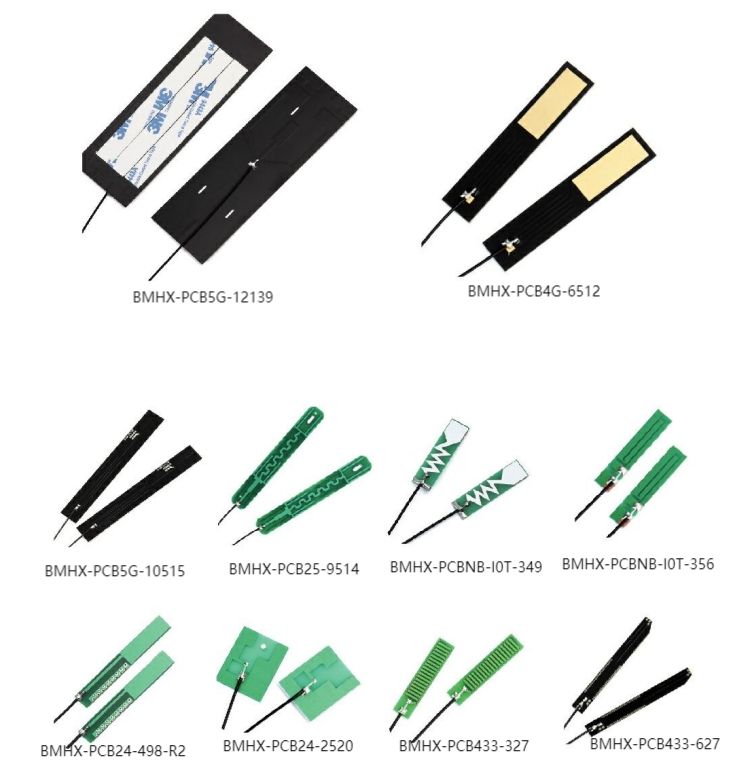

| Part Number: | BMHX-PCB5G-12139 | BMHX-PCB4G-6512 | BMHX-PCB5G-10515 | BMHX-PCB25-9514 | BMHX-PCBNB-I0T-349 | BMHX-PCBNB-I0T-356 | BMHX-PCB24-498-R2 | BMHX-PCB24-2520 | BMHX-PCB433-327 | BMHX-PCB433-627 |
| Type: | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora | Telecom,Wifi,Lora |
| Application: | Portable device,electric meter | Portable device,electric meter | Portable device,electric meter | Portable device,electric meter | Portable device,electric meter | Portable device,electric meter | Portable device,electric meter | Portable device,electric meter | Portable device,electric meter | Portable device,electric meter |
| Supported Bands: | telecom:5G/3G/NB-IoT/GSM Wifi:2.4G | telecom:5G/3G/NB-IoT/GSM Wifi:2.4G | telecom:4G/3G/NB-IoT/GSM Wifi:2.4G | Wifi:2.4G/5.8G | telecom:NB-IoT,GSM | telecom:NB-IoT,GSM | Wifi:2.4G/5.8G | Wifi:2.4G/5.8G | Lora:433M | Lora:433M |
| Product Type: | PCB antenna | PCB antenna | PCB antenna | PCB antenna | PCB antenna | PCB antenna | PCB antenna | PCB antenna | PCB antenna | PCB antenna |
| Effeciency | 30-80% | 30-78% | 30-64% | 30-72% | 30-54% | 30-55% | 30-57% | 30-60% | 30-55% | 30-56% |
| LNA Gain: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Gain: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Connector: | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable | IPEX,customizable |
| Antenna Axis Rate: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Center Phase Tol: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Output VSWR: | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 | ≤1.8 |
| Direction of Polarization: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Port Impedance: | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω | 50Ω |
| Water Proof: | NA | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| Size: | 121*39mm | 105*15mm | 65*12mm | 95*14mm | 34*9mm | 35*6mm | 49*8mm | 25*20mm | 32*7mm | 62*7mm |
